16mm² to 35mm² 6181Y Meter Tails

PVC insulated and sheathed cable for fixed wiring purposes.
The items below are sold in 50mtr drums, 100mtr drums and by the metre.

Product Code:  170001

6181Y Meter Tails image

16mm 6181Y Grey/Blue
mtr

Specification

Outer Sheath : PVC
Sheath Colour : Grey
Insulation : PVC
Insulation Colour : Blue or Brown
Conductor : Stranded Plain Copper Conductor
Voltage : 300/500V
Max. Operating Temp : -15°C to 70°C
Approx. Weight 0.225kgs/mtr
Overall Diameter 10.5mm

£2.50


Click for delivery Information

Product Code:  170002

6181Y Meter Tails image

16mm 6181Y Grey/Blue
50mtr drum

Specification

Outer Sheath : PVC
Sheath Colour : Grey
Insulation : PVC
Insulation Colour : Blue or Brown
Conductor : Stranded Plain Copper Conductor
Voltage : 300/500V
Max. Operating Temp : -15°C to 70°C
Approx. Weight 0.225kgs/mtr
Overall Diameter 10.5mm

£100.00


Click for delivery Information

Product Code:  170003

6181Y Meter Tails image

16mm 6181Y Grey/Blue
100mtr drum

Specification

Outer Sheath : PVC
Sheath Colour : Grey
Insulation : PVC
Insulation Colour : Blue or Brown
Conductor : Stranded Plain Copper Conductor
Voltage : 300/500V
Max. Operating Temp : -15°C to 70°C
Approx. Weight 0.225kgs/mtr
Overall Diameter 10.5mm

£190.00


Click for delivery Information

Product Code:  170004

6181Y Meter Tails image

16mm 6181Y Grey/Brown
mtr

Specification

Outer Sheath : PVC
Sheath Colour : Grey
Insulation : PVC
Insulation Colour : Blue or Brown
Conductor : Stranded Plain Copper Conductor
Voltage : 300/500V
Max. Operating Temp : -15°C to 70°C
Approx. Weight 0.225kgs/mtr
Overall Diameter 10.5mm

£2.50


Click for delivery Information

Product Code:  170005

6181Y Meter Tails image

16mm 6181Y Grey/Brown
50mtr drum

Specification

Outer Sheath : PVC
Sheath Colour : Grey
Insulation : PVC
Insulation Colour : Blue or Brown
Conductor : Stranded Plain Copper Conductor
Voltage : 300/500V
Max. Operating Temp : -15°C to 70°C
Approx. Weight 0.225kgs/mtr
Overall Diameter 10.5mm

£100.00


Click for delivery Information

Product Code:  170006

6181Y Meter Tails image

16mm 6181Y Grey/Brown
100mtr drum

Specification

Outer Sheath : PVC
Sheath Colour : Grey
Insulation : PVC
Insulation Colour : Blue or Brown
Conductor : Stranded Plain Copper Conductor
Voltage : 300/500V
Max. Operating Temp : -15°C to 70°C
Approx. Weight 0.225kgs/mtr
Overall Diameter 10.5mm

£190.00


Click for delivery Information

Product Code:  170007

6181Y Meter Tails image

25mm 6181YH TAILS
Grey/Blue
mtr

Specification

Outer Sheath : PVC
Sheath Colour : Grey
Insulation : PVC
Insulation Colour : Blue or Brown
Conductor : Stranded Plain Copper Conductor
Voltage : 300/500V
Max. Operating Temp : -15°C to 70°C
Approx. Weight 0.340kgs/mtr
Overall Diameter 12.5mm

£3.50


Click for delivery Information

Product Code:  170008

6181Y Meter Tails image

25mm 6181YH TAILS
Grey/Blue
50mtr drum

Specification

Outer Sheath : PVC
Sheath Colour : Grey
Insulation : PVC
Insulation Colour : Blue or Brown
Conductor : Stranded Plain Copper Conductor
Voltage : 300/500V
Max. Operating Temp : -15°C to 70°C
Approx. Weight 0.340kgs/mtr
Overall Diameter 12.5mm

£155.00


Click for delivery Information

Product Code:  170009

6181Y Meter Tails image

25mm 6181YH TAILS
Grey/Blue
100mtr drum

Specification

Outer Sheath : PVC
Sheath Colour : Grey
Insulation : PVC
Insulation Colour : Blue or Brown
Conductor : Stranded Plain Copper Conductor
Voltage : 300/500V
Max. Operating Temp : -15°C to 70°C
Approx. Weight 0.340kgs/mtr
Overall Diameter 12.5mm

£285.00


Click for delivery Information

Product Code:  170010

6181Y Meter Tails image

25mm 6181YH TAILS Grey/Brown
mtr

Specification

Outer Sheath : PVC
Sheath Colour : Grey
Insulation : PVC
Insulation Colour : Blue or Brown
Conductor : Stranded Plain Copper Conductor
Voltage : 300/500V
Max. Operating Temp : -15°C to 70°C
Approx. Weight 0.340kgs/mtr
Overall Diameter 12.5mm

£3.50


Click for delivery Information

Product Code:  170011

6181Y Meter Tails image

25mm 6181YH TAILS Grey/Brown
50mtr drum

Specification

Outer Sheath : PVC
Sheath Colour : Grey
Insulation : PVC
Insulation Colour : Blue or Brown
Conductor : Stranded Plain Copper Conductor
Voltage : 300/500V
Max. Operating Temp : -15°C to 70°C
Approx. Weight 0.340kgs/mtr
Overall Diameter 12.5mm

£155.00


Click for delivery Information

Product Code:  170012

6181Y Meter Tails image

25mm 6181YH TAILS Grey/Brown
100mtr drum

Specification

Outer Sheath : PVC
Sheath Colour : Grey
Insulation : PVC
Insulation Colour : Blue or Brown
Conductor : Stranded Plain Copper Conductor
Voltage : 300/500V
Max. Operating Temp : -15°C to 70°C
Approx. Weight 0.340kgs/mtr
Overall Diameter 12.5mm

£285.00


Click for delivery Information

Product Code:  170041

6181Y Meter Tails image

25mm 6181Y Blue/Blue Flexi-Tails
mtr

Specification

Outer Sheath : PVC
Sheath Colour : Blue
Insulation : PVC
Insulation Colour : Blue
Conductor : Stranded Plain Copper Conductor (19 Strands)
Voltage : 300/500V
Max. Operating Temp : -15°C to 70°C
Approx. Weight 0.340kgs/mtr
Overall Diameter 10.5mm

£3.50


Click for delivery Information

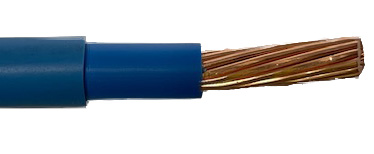

Product Code:  170042

6181Y Meter Tails image

25mm 6181Y Blue/Blue Flexi-Tails
50mtr

Specification

Outer Sheath : PVC
Sheath Colour : Blue
Insulation : PVC
Insulation Colour : Blue
Conductor : Stranded Plain Copper Conductor (19 Strands)
Voltage : 300/500V
Max. Operating Temp : -15°C to 70°C
Approx. Weight 0.340kgs/mtr
Overall Diameter 10.5mm

£155.00


Click for delivery Information

Product Code:  170043

6181Y Meter Tails image

25mm 6181Y Blue/Blue Flexi-Tails
100mtr

Specification

Outer Sheath : PVC
Sheath Colour : Blue
Insulation : PVC
Insulation Colour : Blue
Conductor : Stranded Plain Copper Conductor (19 Strands)
Voltage : 300/500V
Max. Operating Temp : -15°C to 70°C
Approx. Weight 0.340kgs/mtr
Overall Diameter 10.5mm

£285.00


Click for delivery Information

Product Code:  170044

6181Y Meter Tails image

25mm 6181Y Brown/Brown Flexi-Tails
mtr

Specification

Outer Sheath : PVC
Sheath Colour : Brown
Insulation : PVC
Insulation Colour : Brown
Conductor : Stranded Plain Copper Conductor 919 Strands)
Voltage : 300/500V
Max. Operating Temp : -15°C to 70°C
Approx. Weight 0.340kgs/mtr
Overall Diameter 10.5mm

£3.50


Click for delivery Information

Product Code:  170045

6181Y Meter Tails image

25mm 6181Y Brown/Brown Flexi-Tails
50mtr

Specification

Outer Sheath : PVC
Sheath Colour : Brown
Insulation : PVC
Insulation Colour : Brown
Conductor : Stranded Plain Copper Conductor 919 Strands)
Voltage : 300/500V
Max. Operating Temp : -15°C to 70°C
Approx. Weight 0.340kgs/mtr
Overall Diameter 10.5mm

£155.00


Click for delivery Information

Product Code:  170046

6181Y Meter Tails image

25mm 6181Y Brown/Brown Flexi-Tails
100mtr

Specification

Outer Sheath : PVC
Sheath Colour : Brown
Insulation : PVC
Insulation Colour : Brown
Conductor : Stranded Plain Copper Conductor 919 Strands)
Voltage : 300/500V
Max. Operating Temp : -15°C to 70°C
Approx. Weight 0.340kgs/mtr
Overall Diameter 10.5mm

£285.00


Click for delivery Information

Product Code:  170013

6181Y Meter Tails image

35mm 6181Y Grey/Blue
mtr

Specification

Outer Sheath : PVC
Sheath Colour : Grey
Insulation : PVC
Insulation Colour : Blue or Brown
Conductor : Stranded Plain Copper Conductor
Voltage : 300/500V
Max. Operating Temp : -15°C to 70°C
Approx. Weight 0.450kgs/mtr
Overall Diameter 13.5mm

£5.65


Click for delivery Information

Product Code:  170014

6181Y Meter Tails image

35mm 6181Y Grey/Blue
50mtr drum

Specification

Outer Sheath : PVC
Sheath Colour : Grey
Insulation : PVC
Insulation Colour : Blue or Brown
Conductor : Stranded Plain Copper Conductor
Voltage : 300/500V
Max. Operating Temp : -15°C to 70°C
Approx. Weight 0.450kgs/mtr
Overall Diameter 13.5mm

£215.00


Click for delivery Information

Product Code:  170015

6181Y Meter Tails image

35mm 6181Y Grey/Brown
mtr

Specification

Outer Sheath : PVC
Sheath Colour : Grey
Insulation : PVC
Insulation Colour : Blue or Brown
Conductor : Stranded Plain Copper Conductor
Voltage : 300/500V
Max. Operating Temp : -15°C to 70°C
Approx. Weight 0.450kgs/mtr
Overall Diameter 13.5mm

£5.65


Click for delivery Information

Product Code:  170016

6181Y Meter Tails image

35mm 6181Y Grey/Brown
50mtr drum

Specification

Outer Sheath : PVC
Sheath Colour : Grey
Insulation : PVC
Insulation Colour : Blue or Brown
Conductor : Stranded Plain Copper Conductor
Voltage : 300/500V
Max. Operating Temp : -15°C to 70°C
Approx. Weight 0.450kgs/mtr
Overall Diameter 13.5mm

£215.00


Click for delivery Information
