Cat6 FTP 4 Pair Network Data Cable
Per Metre

A 4 pair high performance cable that consists of 4 twisted pair conductors with an overall foil screen shield, used for data transmision. Cat5e supports a frequency range of 250Mhz and is designed for speeds upto 1 gigabit per second.

Core Colours: Blue + Blue/White, Orange + Orange/White, Green + Green/White, Brown + Brown/White.

Product Code:  280035

Product image

Cat6 FTP Solid LSZH 4Pair Cable mtr

Specification

Outer Sheath : LSZH
Sheath Colour : Violet
Screen: Aluminium/Polyester
Filler: PE
Insulation : HDPE
Conductor : Solid Annealed Copper
Standards : In accordance with ISO/IEC 11801, IEC/61156-5, EN50173 EN50288-3-1
Approx. Weight 0.050kgs/mtr
Overall Diameter 7.6mm

Length (mtrs) Price (excl. vat)
1-49£0.86
50-99£0.72
100-249£0.64
250-499£0.64
500+£0.00


✔ Secure Checkout • ✔ UK Stock

Click for delivery Information

Cat6 FTP 4 Pair Network Data Cable
Per 305 Metre Box

A 4 pair high performance cable that consists of 4 twisted pair conductors with an overall foil screen shield, used for data transmision. Cat5e supports a frequency range of 250Mhz and is designed for speeds upto 1 gigabit per second.

Core Colours: Blue + Blue/White, Orange + Orange/White, Green + Green/White, Brown + Brown/White.

Product Code:  280036

Product image

Picture is for illustration purposes only.
Actual product may vary.

Cat6 FTP Solid LSZH 4Pair Cable 305mtrs

Specification

Outer Sheath : LSZH
Sheath Colour : Violet
Screen: Aluminium/Polyester
Filler: PE
Insulation : HDPE
Conductor : Solid Annealed Copper
Standards : In accordance with ISO/IEC 11801, IEC/61156-5, EN50173 EN50288-3-1
Approx. Weight 0.050kgs/mtr
Overall Diameter 7.6mm

£159.50



✔ Secure Checkout • ✔ UK Stock

Click for delivery Information

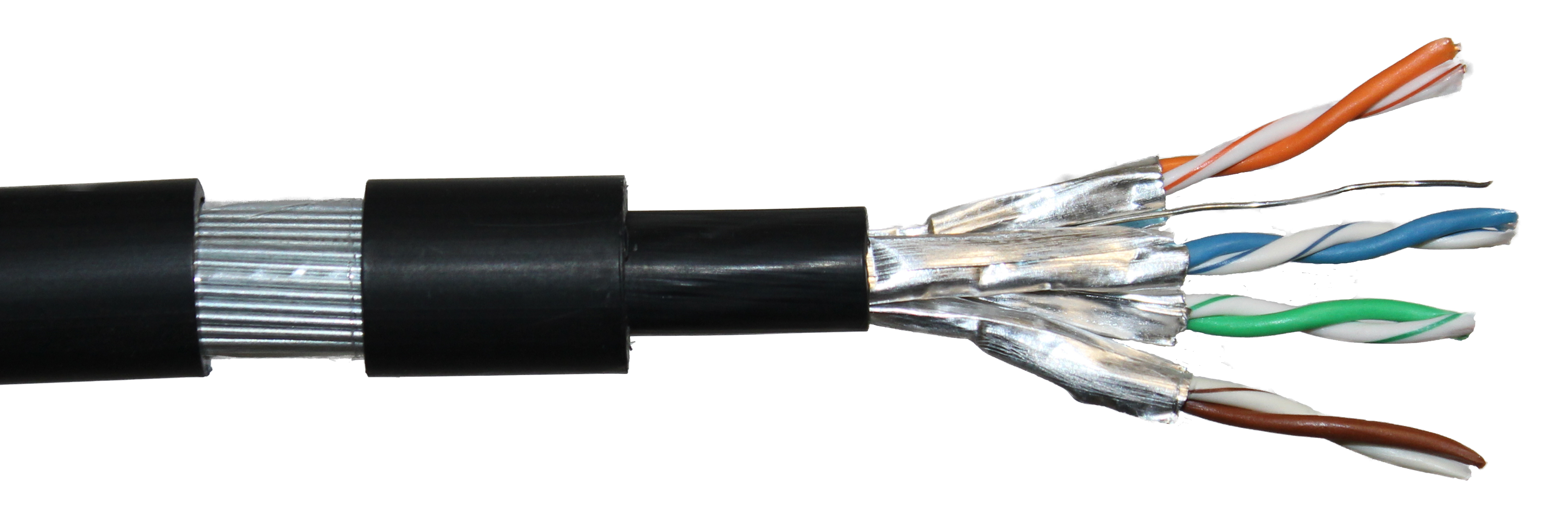

CAT6A 23AWG U/FTP LSZH/SWA/LSZH Ethernet cable

Support for High-Speed Networks: CAT6A supports speeds of up to 10 Gbps and a bandwidth of 500 MHz, suitable for high-demand applications.

Future-Proofing: Meets modern networking standards and prepares for future upgrades.

Versatility: Ideal for both indoor and outdoor installations, including underground or hazardous locations.

Longer Distance Capability: Maintains performance over distances of up to 100 meters, even in electrically noisy environments.

Product Code:  999980

Product image

CAT6A 23AWG U/FTP LSZH/SWA/LSZH Cable

Specification

Outer Sheath : LSZH
Sheath Colour : Black
Armour : Stell Wire Armour (SWA)
Inner Sheath : LSZH
Drain Wire : Tinned Copper - Diameter 0.4mm
Individual Screen: Aluminium Foil
Insulation : FPE
Conductor : Solid Bare Copper AWG 23/1
Approx. Weight 0.240kgs/mtr
Overall Diameter 12.0mm

Length (mtrs) Price (excl. vat)
1-49£4.73
50-99£4.26
100-249£4.04
250-499£3.84
500+£3.65


✔ Secure Checkout • ✔ UK Stock

Click for delivery Information

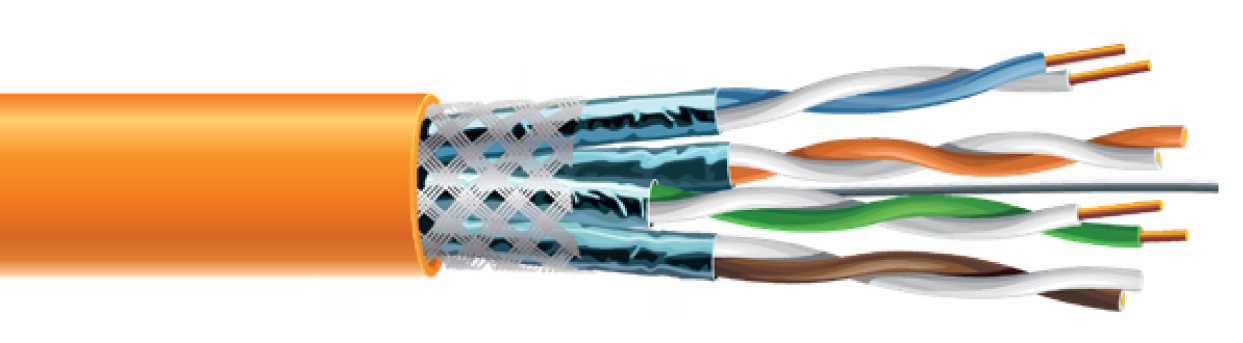

CAT6A 23AWG S/FTP LSZH Orange Ethernet cable

Support for High-Speed Networks: CAT6A supports speeds of up to 10 Gbps and a bandwidth of 500 MHz, suitable for high-demand applications.

Future-Proofing: Meets modern networking standards and prepares for future upgrades. Ten times faster than CAT6 and CAT5e cables.

Longer Distance Capability: Maintains performance over distances of up to 100 meters, even in electrically noisy environments.

Click for Spec. Sheet

Product Code:  999981

Product image

CAT6A 23AWG S-FTP LSZH Orange Cable
Overal braid, Individual: Foil screened

Specification

Outer Sheath : LSZH
Sheath Colour : Orange
Screen : Tinned Braided Copper Wire 40%
Drain Wire : Tinned Copper 26 AWG
Individaul Pair Screen: AL-PET Tape Min. 100%
Insulation : Physical Foam PE
Conductor : Copper Wire AWG 23/1
Approx. Weight 0.150kgs/mtr
Overall Diameter 7.8mm

Length (mtrs) Price (excl. vat)
1-49£1.40
50-99£1.19
100-249£1.09
250-499£1.06
500+£1.01


✔ Secure Checkout • ✔ UK Stock

Click for delivery Information
