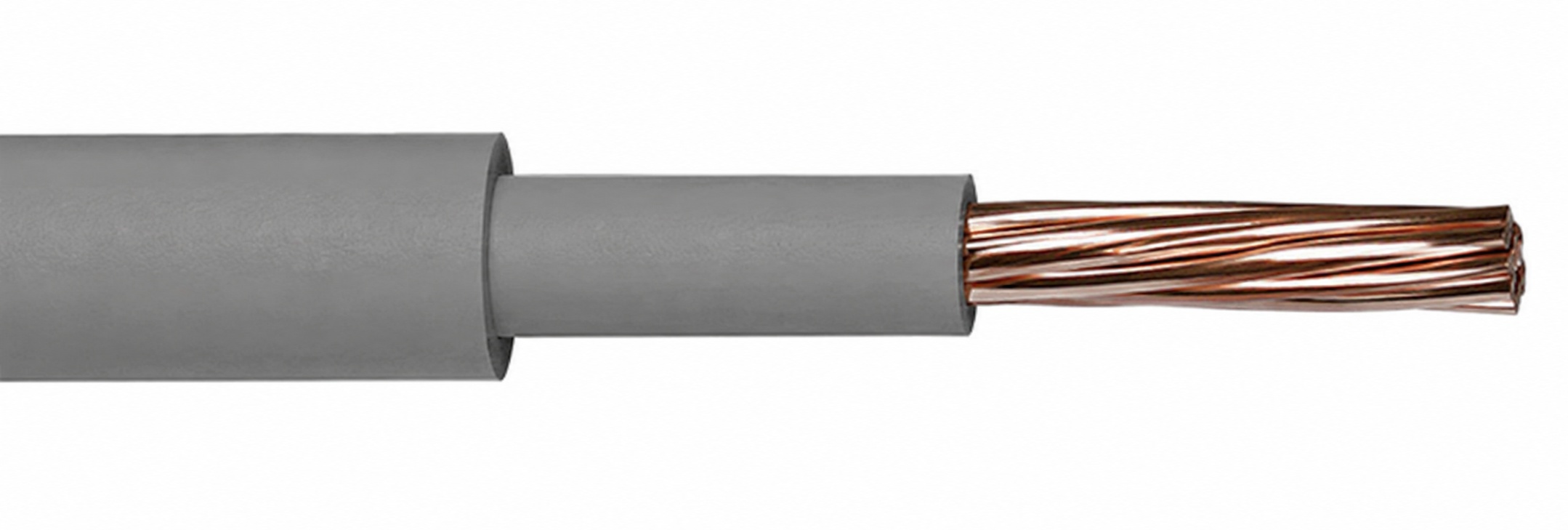

XLPE/XLPE Cathodic Protection Cable for use to protect buried or submerged metal pipelines/structures against electrolytic and galvanic corrosion.
This type of cathodic protection cable features XLPE insulation both for the inner conductor and the outer layer.
XLPE is known for its excellent electrical properties, high insulation resistance, and resistance to moisture and chemicals.
XLPE/XLPE cables offer enhanced durability and resistance to environmental factors, making them suitable for harsh operating conditions.
They are often preferred for applications where superior insulation performance and longevity are critical, such as in corrosive environments or areas with high levels of moisture.
Product Code: 999901
2.5mm² Single Core XLPE/XLPE Black/Black Cathodic Protection 500M Drum
Specification
Outer Sheath : XLPE
Sheath Colour : As Above
Insulation : XLPE
Conductor : Class 2 Copper Conductor
Voltage : 600/1000V
Max. Operating Temp : -15°C to 90°C
Approx. Weight 0.040kgs/mtr Overall Diameter 5.0mm
£225.00
Product Code: 999902
2.5mm² Single Core XLPE/XLPE Blue/Blue Cathodic Protection 500M Drum
Specification
Outer Sheath : XLPE
Sheath Colour : As Above
Insulation : XLPE
Conductor : Class 2 Copper Conductor
Voltage : 600/1000V
Max. Operating Temp : -15°C to 90°C
Approx. Weight 0.040kgs/mtr Overall Diameter 5.0mm
£225.00
Product Code: 999903
2.5mm² Single Core XLPE/XLPE Grey/Grey Cathodic Protection 500M Drum
Specification
Outer Sheath : XLPE
Sheath Colour : As Above
Insulation : XLPE
Conductor : Class 2 Copper Conductor
Voltage : 600/1000V
Max. Operating Temp : -15°C to 90°C
Approx. Weight 0.040kgs/mtr Overall Diameter 5.0mm
£225.00
Product Code: 999904
2.5mm² Single Core XLPE/XLPE Red/Red Cathodic Protection 500M Drum
Specification
Outer Sheath : XLPE
Sheath Colour : As Above
Insulation : XLPE
Conductor : Class 2 Copper Conductor
Voltage : 600/1000V
Max. Operating Temp : -15°C to 90°C
Approx. Weight 0.040kgs/mtr Overall Diameter 5.0mm
£225.00
Product Code: 999905
2.5mm² Single Core XLPE/XLPE Yellow/Yellow Cathodic Protection 500M Drum
Specification
Outer Sheath : XLPE
Sheath Colour : As Above
Insulation : XLPE
Conductor : Class 2 Copper Conductor
Voltage : 600/1000V
Max. Operating Temp : -15°C to 90°C
Approx. Weight 0.040kgs/mtr Overall Diameter 5.0mm
£225.00
Product Code: 999906
4.0mm² Single Core XLPE/XLPE Black/Black
Cathodic Protection Per Mtr
Specification
Outer Sheath : XLPE
Sheath Colour : As Above
Insulation : XLPE
Conductor : Class 2 Copper Conductor
Voltage : 600/1000V
Max. Operating Temp : -15°C to 90°C
Approx. Weight 0.058kgs/mtr Overall Diameter 6.0mm
1-49
50-99
100-249
250-499
500+
£0.74
£0.61
£0.57
£0.55
£0.53
Product Code: 999907
4.0mm² Single Core XLPE/XLPE Red/Red
Cathodic Protection Per Mtr
Specification
Outer Sheath : XLPE
Sheath Colour : As Above
Insulation : XLPE
Conductor : Class 2 Copper Conductor
Voltage : 600/1000V
Max. Operating Temp : -15°C to 90°C
Approx. Weight 0.058kgs/mtr Overall Diameter 6.0mm
1-49
50-99
100-249
250-499
500+
£0.74
£0.61
£0.57
£0.55
£0.53
XLPE/PVC (N2XY) Cathodic Protection Cable
XLPE/PVC (N2XY) Cathodic Protection Cable for use to protect buried or submerged metal pipelines/structures against electrolytic and galvanic corrosion.
XLPE/PVC cathodic cable features XLPE insulation for the inner conductor and PVC (polyvinyl chloride) insulation for the outer layer.
PVC is a cost-effective material that provides good insulation properties and resistance to abrasion and mechanical damage.
XLPE/PVC cables are suitable for applications where cost efficiency is a primary consideration while still requiring adequate insulation and protection against environmental factors.
They are commonly used in less demanding environments or applications where exposure to moisture, chemicals, or extreme temperatures is minimal.
Product Code: 999910
2.5mm² Single Core XLPE/PVC RED/RED (N2XY) Cathodic Protection 500M Drum
Specification
Outer Sheath : PVC
Sheath Colour : As Above
Insulation : XLPE
Conductor : Class 2 Copper Conductor
Voltage : 600/1000V
Max. Operating Temp : -20°C to 60°C
Approx. Weight 0.040kgs/mtr Overall Diameter 5.0mm
£225.00
Product Code: 999911
2.5mm² Single Core XLPE/PVC BLACK/BLACK (N2XY) Cathodic Protection 500M Drum
Specification
Outer Sheath : PVC
Sheath Colour : As Above
Insulation : XLPE
Conductor : Class 2 Copper Conductor
Voltage : 600/1000V
Max. Operating Temp : -20°C to 60°C
Approx. Weight 0.040kgs/mtr Overall Diameter 5.0mm
£225.00
Product Code: 999912
2.5mm² Single Core XLPE/PVC BLUE/BLUE (N2XY) Cathodic Protection 500M Drum
Specification
Outer Sheath : PVC
Sheath Colour : As Above
Insulation : XLPE
Conductor : Class 2 Copper Conductor
Voltage : 600/1000V
Max. Operating Temp : -20°C to 60°C
Approx. Weight 0.040kgs/mtr Overall Diameter 5.0mm
£225.00
Product Code: 999913
2.5mm² Single Core XLPE/PVC GREY/GREY (N2XY) Cathodic Protection 500M Drum
Specification
Outer Sheath : PVC
Sheath Colour : As Above
Insulation : XLPE
Conductor : Class 2 Copper Conductor
Voltage : 600/1000V
Max. Operating Temp : -20°C to 60°C
Approx. Weight 0.040kgs/mtr Overall Diameter 5.0mm
£225.00
Product Code: 999920
6mm² Single Core XLPE/PVC RED/RED
(N2XY) Cathodic Protection Per Mtr
Specification
Outer Sheath : PVC
Sheath Colour : As Above
Insulation : XLPE
Conductor : Class 2 Copper Conductor
Voltage : 600/1000V
Max. Operating Temp : -20°C to 60°C
Approx. Weight 0.100kgs/mtr Overall Diameter 7.0mm
1-49
50-99
100-249
250-499
500+
£1.01
£0.94
£0.86
£0.79
£0.74
Product Code: 999921
6mm² Single Core XLPE/PVC BLACK/BLACK
(N2XY) Cathodic Protection Per Mtr
Specification
Outer Sheath : PVC
Sheath Colour : As Above
Insulation : XLPE
Conductor : Class 2 Copper Conductor
Voltage : 600/1000V
Max. Operating Temp : -20°C to 60°C
Approx. Weight 0.100kgs/mtr Overall Diameter 7.0mm
1-49
50-99
100-249
250-499
500+
£1.01
£0.94
£0.86
£0.79
£0.74
Product Code: 999930
10mm² Single Core XLPE/PVC RED/RED
(N2XY) Cathodic Protection Cable Per Mtr
Specification
Outer Sheath : PVC
Sheath Colour : As Above
Insulation : XLPE
Conductor : Class 2 Copper Conductor
Voltage : 600/1000V
Max. Operating Temp : -20°C to 60°C
Approx. Weight 0.150kgs/mtr Overall Diameter 8.0mm
1-49
50-99
100-249
250-499
500+
£1.45
£1.33
£1.25
£1.19
£1.13
Product Code: 999931
10mm² Single Core XLPE/PVC BLACK/BLACK
(N2XY) Cathodic Protection Cable Per Mtr
Specification
Outer Sheath : PVC
Sheath Colour : As Above
Insulation : XLPE
Conductor : Class 2 Copper Conductor
Voltage : 600/1000V
Max. Operating Temp : -20°C to 60°C
Approx. Weight 0.150kgs/mtr Overall Diameter 8.0mm
1-49
50-99
100-249
250-499
500+
£1.45
£1.33
£1.25
£1.19
£1.13
Product Code: 999932
10mm² Single Core XLPE/PVC YELLOW/YELLOW
(N2XY) Cathodic Protection Cable Per Mtr
Specification
Outer Sheath : PVC
Sheath Colour : As Above
Insulation : XLPE
Conductor : Class 2 Copper Conductor
Voltage : 600/1000V
Max. Operating Temp : -20°C to 60°C
Approx. Weight 0.150kgs/mtr Overall Diameter 8.0mm
1-49
50-99
100-249
250-499
500+
£1.45
£1.33
£1.25
£1.19
£1.13
Product Code: 999933
10mm² Single Core XLPE/PVC BLUE/BLUE
(N2XY) Cathodic Protection Cable Per Mtr
Specification
Outer Sheath : PVC
Sheath Colour : As Above
Insulation : XLPE
Conductor : Class 2 Copper Conductor
Voltage : 600/1000V
Max. Operating Temp : -20°C to 60°C
Approx. Weight 0.150kgs/mtr Overall Diameter 8.0mm
1-49
50-99
100-249
250-499
500+
£1.45
£1.33
£1.25
£1.19
£1.13
Product Code: 999934
10mm² Single Core XLPE/PVC WHITE/WHITE
(N2XY) Cathodic Protection Cable Per Mtr
Specification
Outer Sheath : PVC
Sheath Colour : As Above
Insulation : XLPE
Conductor : Class 2 Copper Conductor
Voltage : 600/1000V
Max. Operating Temp : -20°C to 60°C
Approx. Weight 0.150kgs/mtr Overall Diameter 8.0mm
1-49
50-99
100-249
250-499
500+
£1.45
£1.33
£1.25
£1.19
£1.13
Product Code: 999944
16mm² Single Core XLPE/PVC RED/RED
(N2XY) Cathodic Protection Cable Per Mtr
Specification
Outer Sheath : PVC
Sheath Colour : As Above
Insulation : XLPE
Conductor : Class 2 Copper Conductor
Voltage : 600/1000V
Max. Operating Temp : -20°C to 60°C
Approx. Weight 0.220kgs/mtr Overall Diameter 9.5mm
1-49
50-99
100-249
250-499
500+
£2.68
£2.45
£2.35
£2.19
£2.09
Product Code: 999945
16mm² Single Core XLPE/PVC BLACK/BLACK
(N2XY) Cathodic Protection Cable Per Mtr
Specification
Outer Sheath : PVC
Sheath Colour : As Above
Insulation : XLPE
Conductor : Class 2 Copper Conductor
Voltage : 600/1000V
Max. Operating Temp : -20°C to 60°C
Approx. Weight 0.220kgs/mtr Overall Diameter 9.5mm
1-49
50-99
100-249
250-499
500+
£2.68
£2.45
£2.35
£2.19
£2.09
Product Code: 999946
16mm² Single Core XLPE/PVC WHITE/WHITE
(N2XY) Cathodic Protection Cable Per Mtr
Specification
Outer Sheath : PVC
Sheath Colour : As Above
Insulation : XLPE
Conductor : Class 2 Copper Conductor
Voltage : 600/1000V
Max. Operating Temp : -20°C to 60°C
Approx. Weight 0.220kgs/mtr Overall Diameter 9.5mm
1-49
50-99
100-249
250-499
500+
£2.68
£2.45
£2.35
£2.19
£2.09
Product Code: 999947
16mm² Single Core XLPE/PVC YELLOW/YELLOW
(N2XY) Cathodic Protection Cable Per Mtr
Specification
Outer Sheath : PVC
Sheath Colour : As Above
Insulation : XLPE
Conductor : Class 2 Copper Conductor
Voltage : 600/1000V
Max. Operating Temp : -20°C to 60°C
Approx. Weight 0.220kgs/mtr Overall Diameter 9.5mm
1-49
50-99
100-249
250-499
500+
£2.68
£2.45
£2.35
£2.19
£2.09
PVDF(KYNAR)/HMPE Cathodic Protection Cable
PVDF/Kynar: Polyvinylidene fluoride (PVDF), often known by the brand name Kynar, is highly resistant to chemical attack, including acids, bases, and solvents. This makes the cable highly durable in corrosive environments, which is critical in cathodic protection systems.
HMPE: High Molecular Weight Polyethylene provides excellent resistance to water, chemicals, and other corrosive agents. This outer layer further enhances the cable's longevity.
Key areas of use: Underground pipelines, submerged structures, storage tanks, water treatment and distribution systems, industrial plants, ships hulls, buoys and navigationalaids, bridges, reinforced concrete structures, offshore wind turbines, submarines, naval vessels.
Product Code: 999951
10mm² Single Core PVDF(KYNAR)/HMWPE
BLACK/BLACK Cathodic Protection Cable
Per Mtr
Specification
Outer Sheath : HMWPE
Sheath Colour : Black
Insulation : PVDF(Kynar)
Conductor : Class 2 Copper Conductor
Voltage : 600/1000V
Minimum ambient air temperature : -55°C;
Maximum continous conductor temperature : 105°C
Approx. Weight 0.150kgs/mtr Overall Diameter 8.0mm
1-49
50-99
100-249
250-499
500+
£2.07
£1.91
£1.77
£1.72
£1.66
Product Code: 999952
16mm² Single Core PVDF(KYNAR)/HMWPE
BLACK/BLACK Cathodic Protection Cable
Per Mtr
Specification
Outer Sheath : HMWPE
Sheath Colour : Black
Insulation : PVDF(Kynar)
Conductor : Class 2 Copper Conductor
Voltage : 600/1000V
Minimum ambient air temperature : -55°C;
Maximum continous conductor temperature : 105°C
Approx. Weight 0.220kgs/mtr Overall Diameter 9.5mm
1-49
50-99
100-249
250-499
500+
£3.50
£3.29
£3.00
£2.92
£2.84
Product Code: 999953
35mm² Single Core PVDF(KYNAR)/HMWPE
BLACK/BLACK Cathodic Protection Cable
Per Mtr
Specification
Outer Sheath : HMWPE
Sheath Colour : Black
Insulation : PVDF(Kynar)
Conductor : Class 2 Copper Conductor
Voltage : 600/1000V
Minimum ambient air temperature : -55°C;
Maximum continous conductor temperature : 105°C
Approx. Weight 0.450kgs/mtr Overall Diameter 13.5mm
Delivery is free to most of the mainland UK on all orders over £75.00(excl. V.A.T).
Please Note: This excludes all UK Islands including Northern Ireland and the following postcodes HS1-HS9, IV21-IV24, IV26-IV28, IV40-IV49, IV5, IV51-IV56, KA27-KA28, KW1-KW17, PA20-PA21, PA41-PA49, PA60-PA88, PH36-PH44, TR21-TR25, ZE1-ZE3
where delivery cost should be requested before purchase.
Orders less than £75.00(excl. V.A.T) are subject to a delivery charge of £12.50(+V.A.T).
Please Note: This excludes all UK Islands including Northern Ireland and the following postcodes HS1-HS9, IV21-IV24, IV26-IV28, IV40-IV49, IV5, IV51-IV56, KA27-KA28, KW1-KW17, PA20-PA21, PA41-PA49, PA60-PA88, PH36-PH44, TR21-TR25, ZE1-ZE3
where delivery cost should be requested before purchase.
All in stock items ordered before 12.30pm will be despatched on a next day delivery.
Please Note: Scotland deliveries can take upto 3 days
(Please see Shipping & Handling policy for full conditions.)
