BS5308 Instrumentation Cable

Product Code: 180007

1.5mm² 1pr BS5308 P1T2 Collectively Screened

Specification

Outer Sheath : PVC
Sheath Colour : Black
Armour : SWA
Bedding : PE
Screen : Collective Aluminium Mylar
Insulation : PE
Conductor : Class 2 Stranded Copper
Voltage : 300/500V
Max. Conductor Temperature Rating : 65°C
Approx. Weight 0.300kgs/mtr
Overall Diameter 12.5mm

Length (mtrs)	Price (excl. vat)
1-49	£1.58
50-99	£1.46
100-249	£1.22
250-499	£1.22
500+	£1.22

Price per metre

✔ Secure Checkout • ✔ UK Stock

Product Code: 180001

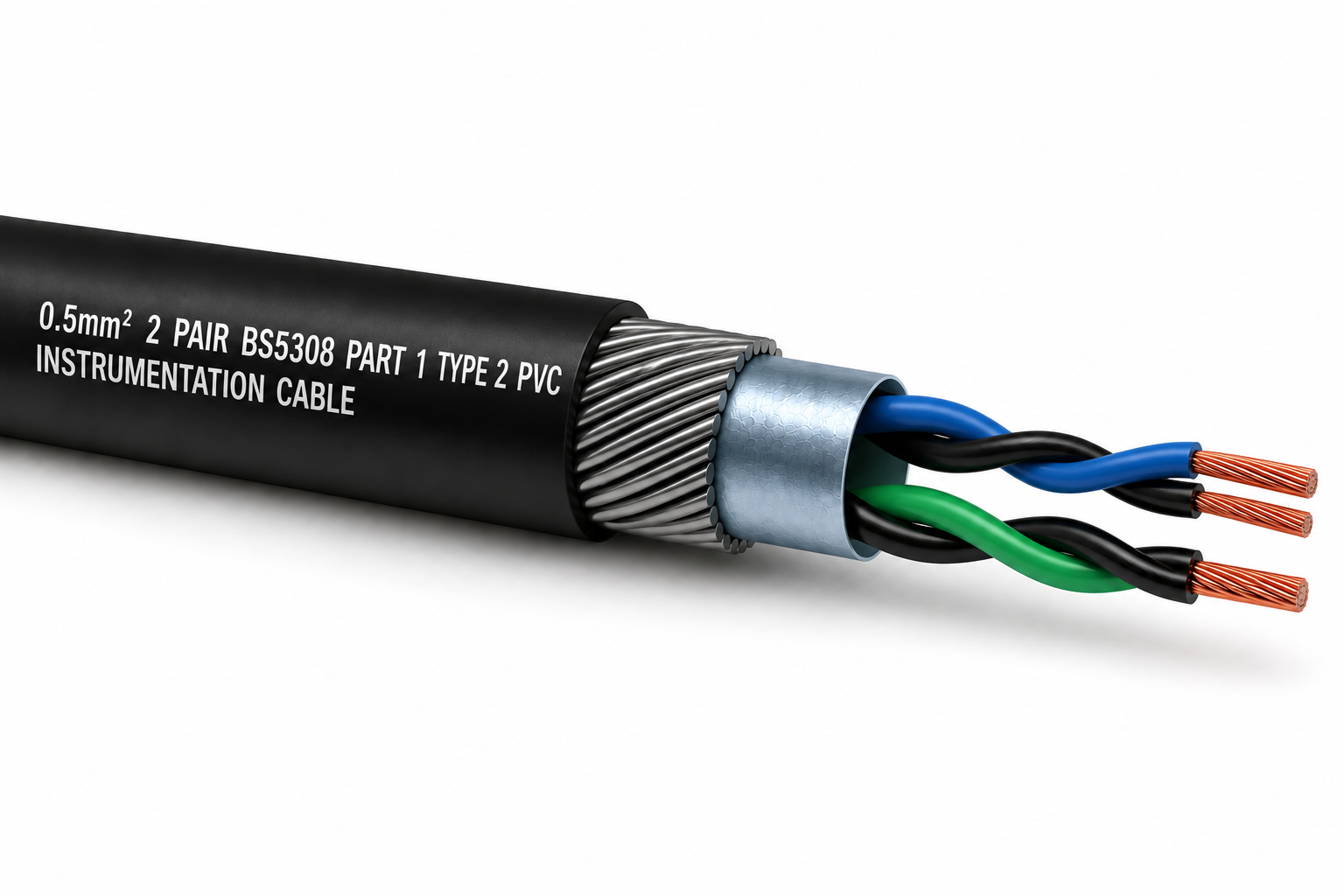

0.5mm² 2pr BS5308 P1T2 Collectively Screened

Specification

Outer Sheath : PVC
Sheath Colour : Black
Armour : SWA
Bedding : PE
Screen : Collective Aluminium Mylar
Insulation : PE
Conductor : Class 5 Flexible Copper
Voltage : 300/500V
Max. Conductor Temperature Rating : 65°C
Approx. Weight 0.000kgs/mtr
Overall Diameter 0.0mm

Length (mtrs)	Price (excl. vat)
1-49	£1.95
50-99	£1.82
100-249	£1.71
250-499	£1.71
500+	£1.71

Price per metre

✔ Secure Checkout • ✔ UK Stock

Product Code: 180002

0.75mm² 2pr BS5308 P1T2 Collectively Screened

Specification

Outer Sheath : PVC
Sheath Colour : Black
Armour : SWA
Bedding : PE
Screen : Collective Aluminium Mylar
Insulation : PE
Conductor : Class 5 Flexible Copper
Voltage : 300/500V
Max. Conductor Temperature Rating : 65°C
Approx. Weight 0.000kgs/mtr
Overall Diameter 0.0mm

Length (mtrs)	Price (excl. vat)
1-49	£2.18
50-99	£1.94
100-249	£1.75
250-499	£1.75
500+	£1.75

Price per metre

✔ Secure Checkout • ✔ UK Stock

Product Code: 180003

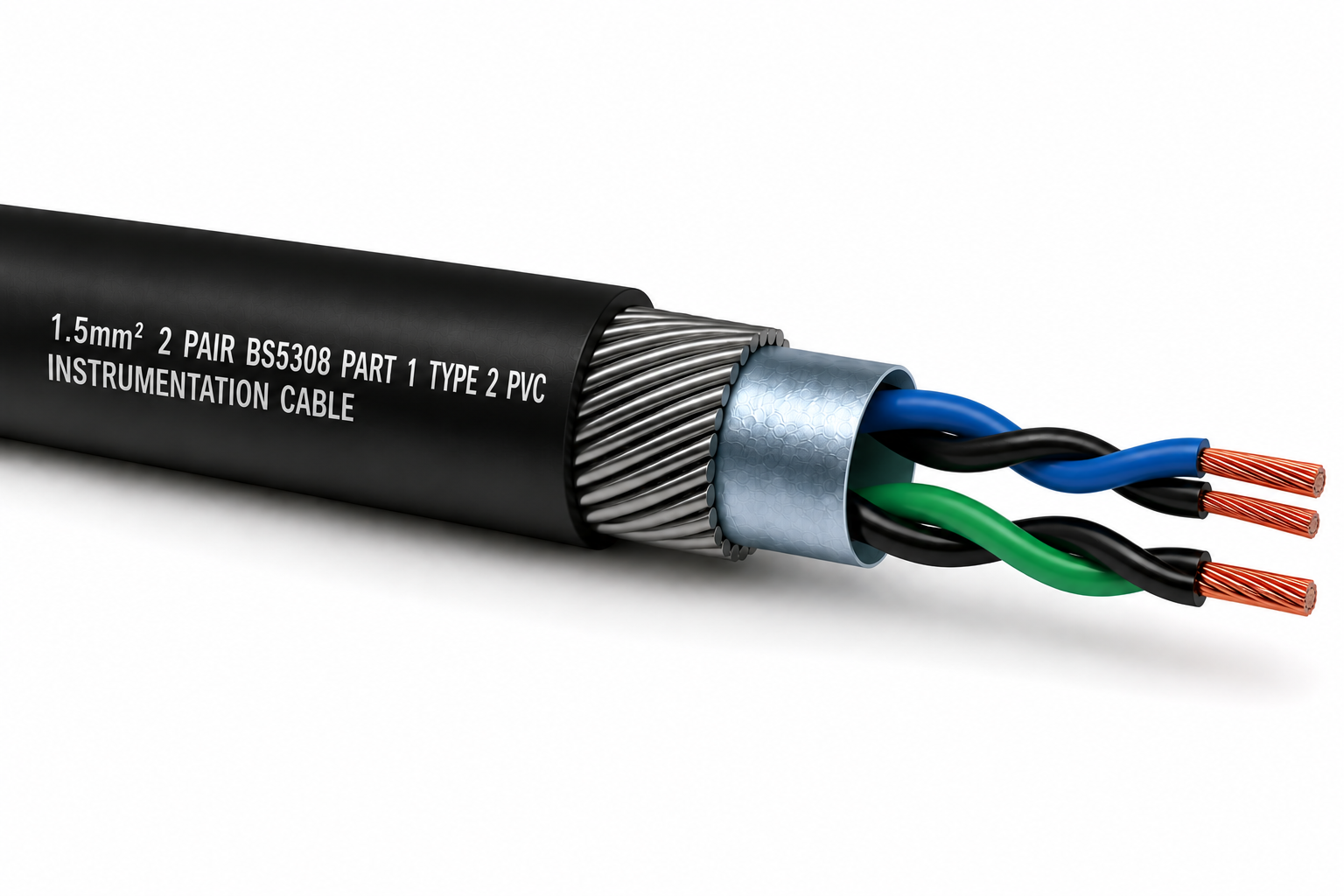

1.5mm² 2pr BS5308 P1T2 Collectively Screened

Specification

Outer Sheath : PVC
Sheath Colour : Black
Armour : SWA
Bedding : PE
Screen : Collective Aluminium Mylar
Insulation : PE
Conductor : Class 5 Flexible Copper
Voltage : 300/500V
Max. Conductor Temperature Rating : 65°C
Approx. Weight 0.380kgs/mtr
Overall Diameter 14.2mm

Length (mtrs)	Price (excl. vat)
1-49	£2.42
50-99	£2.24
100-249	£2.08
250-499	£1.94
500+	£1.89

Price per metre

✔ Secure Checkout • ✔ UK Stock

Product Code: 180004

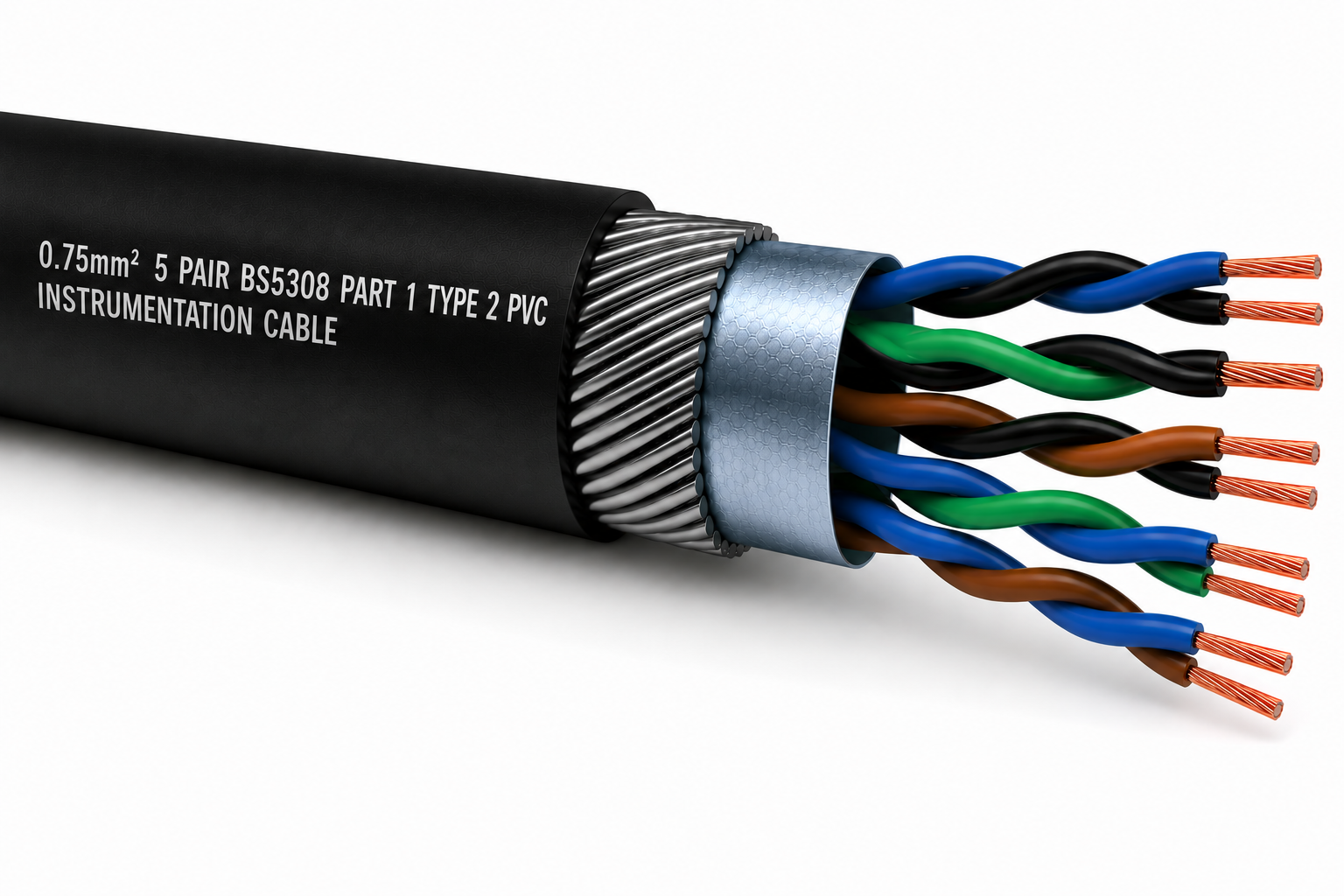

0.75mm² 5pr BS5308 P1T2 Collectively Screened

Specification

Outer Sheath : PVC
Sheath Colour : Black
Armour : SWA
Bedding : PE
Screen : Collective Aluminium Mylar
Insulation : PE
Conductor : Class 5 Flexible Copper
Voltage : 300/500V
Max. Conductor Temperature Rating : 65°C
Approx. Weight 0.000kgs/mtr
Overall Diameter 0.0mm

Length (mtrs)	Price (excl. vat)
1-49	£3.80
50-99	£3.63
100-249	£3.49
250-499	£3.49
500+	£3.49

Price per metre

✔ Secure Checkout • ✔ UK Stock

Product Code: 180005

0.75mm² 10pr BS5308 P1T2 Collectively Screened

Specification

Outer Sheath : PVC
Sheath Colour : Black
Armour : SWA
Bedding : PE
Screen : Collective Aluminium Mylar
Insulation : PE
Conductor : Class 5 Flexible Copper
Voltage : 300/500V
Max. Conductor Temperature Rating : 65°C
Approx. Weight 0.000kgs/mtr
Overall Diameter 0.0mm

Length (mtrs)	Price (excl. vat)
1-49	£7.38
50-99	£7.02
100-249	£6.67
250-499	£6.67
500+	£6.67

Price per metre

✔ Secure Checkout • ✔ UK Stock

Product Code: 180006

0.5mm² 20pr BS5308 P1T2 Collectively Screened

Specification

Outer Sheath : PVC
Sheath Colour : Black
Armour : SWA
Bedding : PE
Screen : Collective Aluminium Mylar
Insulation : PE
Conductor : Class 5 Flexible Copper
Voltage : 300/500V
Max. Conductor Temperature Rating : 65°C
Approx. Weight 0.000kgs/mtr
Overall Diameter 29.0mm
