Defence Standard 7-2-*C Cable

Looking for 7-2-*C LSF Defence Standard Cable?

If you are looking for high-quality 7-2-*C LSF Defence Standard Cable, we offer a comprehensive range of Defence Standard screened cables designed for demanding military, aerospace, naval, industrial, and critical infrastructure applications. Manufactured to exacting standards, these cables provide outstanding electrical performance, mechanical durability, and long-term reliability in challenging environments.

Our 7-2-*C LSF Defence Standard Cable range is available in multiple core configurations, including 2 core, 4 core, 6 core, 8 core, 12 core and other custom core counts, making them suitable for signal transmission, control systems, instrumentation, communications equipment, and defence-related installations.

Featuring a robust Low Smoke and Fume (LSF) outer sheath, these cables are designed to minimise the emission of harmful smoke and corrosive gases in the event of a fire. The braided screen provides excellent protection against electromagnetic interference (EMI) and radio frequency interference (RFI), helping to ensure signal integrity and reliable system performance.

Key Features of 7-2-*C LSF Defence Standard Cable

Manufactured to recognised Defence Standard specifications.
Low Smoke and Fume (LSF) sheath for improved fire safety.
Braided screen for enhanced EMI and RFI protection.
Flexible stranded copper conductors.
Excellent mechanical strength and durability.
Suitable for military, aerospace, marine and industrial applications.
Available in a wide range of core counts and conductor sizes.
Reliable performance in demanding operating environments.

Applications

7-2-*C Screened LSF Defence Standard Cable is commonly used in military vehicles, naval vessels, aerospace systems, communications equipment, radar installations, control panels, instrumentation circuits, data transmission systems, and other mission-critical applications where reliability and signal protection are essential.

Whether you require 7-2-2C, 7-2-4C, 7-2-6C, 7-2-8C, 7-2-12C or other Defence Standard cable variants, we supply premium-quality screened cables with fast UK delivery, competitive pricing, and expert technical support. Browse our range of LSF Defence Standard cables today and find the ideal solution for your military, industrial, aerospace, or specialist wiring project.

Product Code: 290017

7 - 2 - 2C LSF (2core) mtr

Specification

Outer Sheath : LSZH
Sheath Colour : Black
Tape : Mylar
Screen : Tinned Copper Wire Braid Insulation : PVC
Amount OF Cores : 2
Core Colour : Red, Blue
Conductor : 7/0.2mm Stranded Tinned Copper Conductor
Voltage : 440V
Fixed Temp. Rating : -30°C to 60°C
Flexed Temp. Rating : -15°C to 60°C
Minimum Bending Radius : 7.5 x O/D
Approx. Weight 0.023kgs/mtr
Overall Diameter 4.6mm

Length (mtrs)	Price (excl. vat)
1-49	£0.50
50-99	£0.45
100-249	£0.42
250-499	£0.42
500+	£0.42

Price per metre

✔ Secure Checkout • ✔ UK Stock

Product Code: 290018

7 - 2 - 4C LSZH (4core) mtr

Specification

Outer Sheath : LSZH
Sheath Colour : Black
Tape : Mylar
Screen : Tinned Copper Wire Braid Insulation : LSZH
Amount OF Cores : 4
Core Colour : Red, Blue, Green, Yellow
Conductor : 7/0.2mm Stranded Tinned Copper Conductor
Voltage : 440V
Fixed Temp. Rating : -30°C to 60°C
Flexed Temp. Rating : -15°C to 60°C
Minimum Bending Radius : 7.5 x O/D
Approx. Weight 0.032kgs/mtr
Overall Diameter 5.6mm

Length (mtrs)	Price (excl. vat)
1-49	£0.80
50-99	£0.76
100-249	£0.73
250-499	£0.69
500+	£0.66

Price per metre

✔ Secure Checkout • ✔ UK Stock

Product Code: 290019

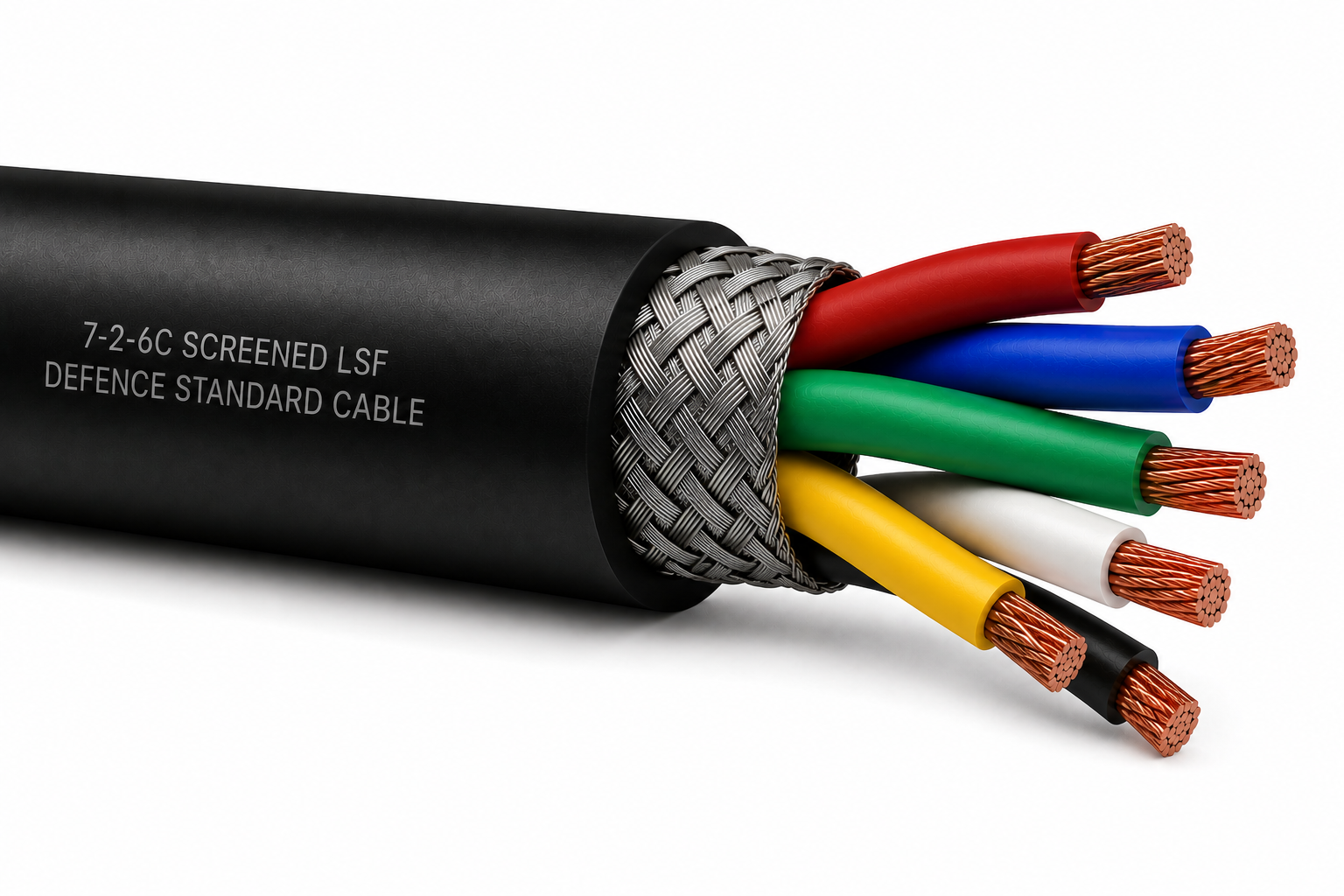

7 - 2 - 6C LSZH (6core) mtr

Specification

Outer Sheath : LSZH
Sheath Colour : Black
Tape : Mylar
Screen : Tinned Copper Wire Braid Insulation : LSZH
Amount OF Cores : 6
Core Colour : Red, Blue, Green, Yellow, White, Black
Conductor : 7/0.2mm Stranded Tinned Copper Conductor
Voltage : 440V
Fixed Temp. Rating : -30°C to 60°C
Flexed Temp. Rating : -15°C to 60°C
Minimum Bending Radius : 7.5 x O/D
Approx. Weight 0.053kgs/mtr
Overall Diameter 6.6mm

Length (mtrs)	Price (excl. vat)
1-49	£0.95
50-99	£0.90
100-249	£0.86
250-499	£0.81
500+	£0.77

Price per metre

✔ Secure Checkout • ✔ UK Stock

Product Code: 290020

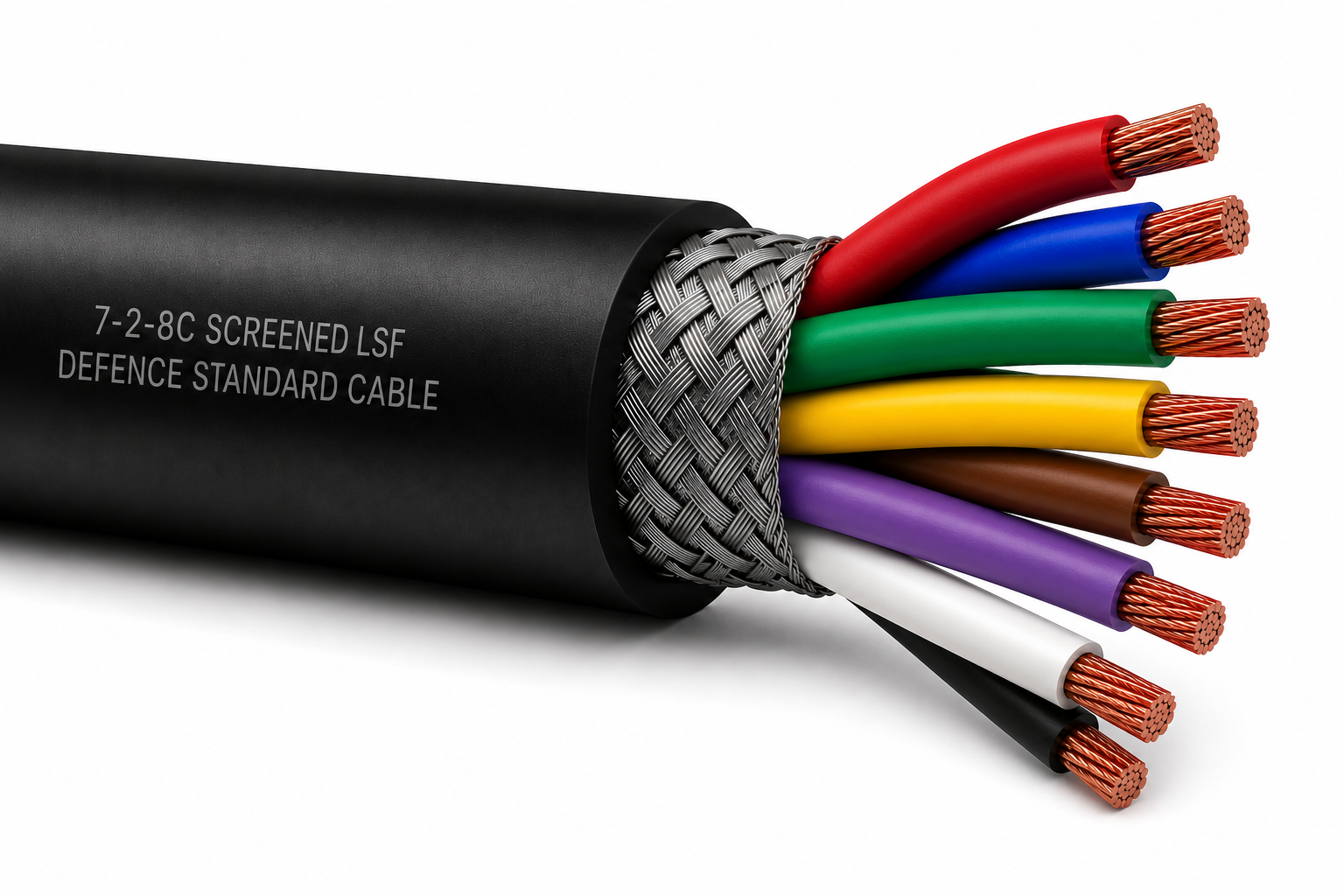

7 - 2 - 8C LSZH (8core) mtr

Specification

Outer Sheath : LSZH
Sheath Colour : Black
Tape : Mylar
Screen : Tinned Copper Wire Braid Insulation : LSZH
Amount OF Cores : 8
Core Colour : Red, Blue, Green, Yellow, White, Black, Brown, Violet
Conductor : 7/0.2mm Stranded Tinned Copper Conductor
Voltage : 440V
Fixed Temp. Rating : -30°C to 60°C
Flexed Temp. Rating : -15°C to 60°C
Minimum Bending Radius : 7.5 x O/D
Approx. Weight 0.061kgs/mtr
Overall Diameter 6.9mm

Length (mtrs)	Price (excl. vat)
1-49	£1.29
50-99	£1.22
100-249	£1.16
250-499	£1.10
500+	£1.04

Price per metre

✔ Secure Checkout • ✔ UK Stock

Product Code: 290021

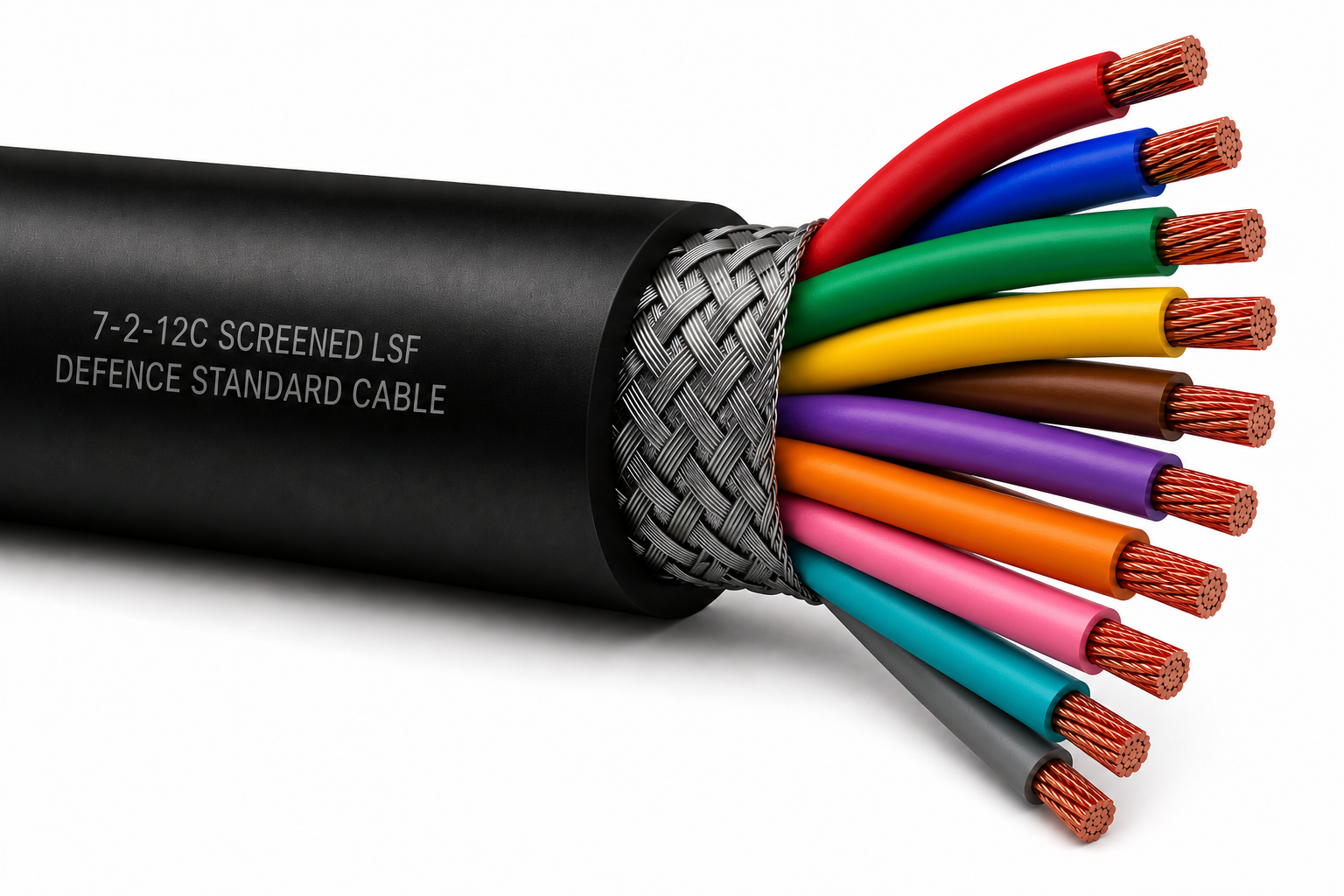

7 - 2 - 12C LSZH (12core) mtr

Specification

Outer Sheath : LSZH
Sheath Colour : Black
Tape : Mylar
Screen : Tinned Copper Wire Braid Insulation : LSZH
Amount OF Cores : 12
Core Colour : Red, Blue, Green, Yellow, White, Black, Brown, Violet, Orange, Pink, Turquoise, Grey
Conductor : 7/0.2mm Stranded Tinned Copper Conductor
Voltage : 440V
Fixed Temp. Rating : -30°C to 60°C
Flexed Temp. Rating : -15°C to 60°C
Minimum Bending Radius : 7.5 x O/D
Approx. Weight 0.062kgs/mtr
Overall Diameter 8.2mm
