2 Core SY Cable

SY Cable image

Colour Coded Cores - Ideal for power disribution.

Cut to length from UK stock.

3 Core SY Cable

SY Cable image

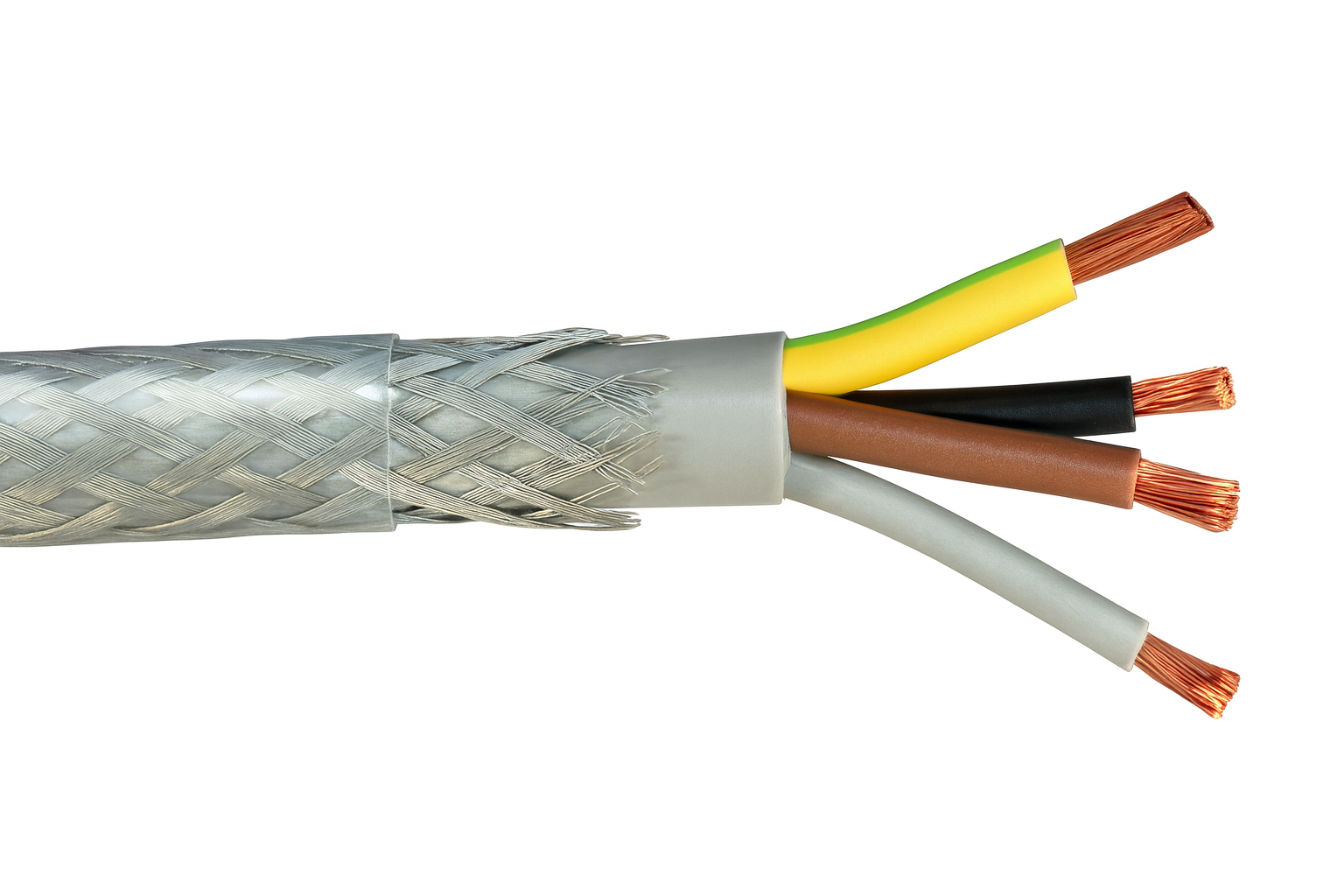

4 Core SY Control Cable - Flexible Steel Wire Braided Cable

SY Cable image
Our high-quality SY control cables are manufactured with steel wire braid for extra mechanical protection, making them ideal for industrial automation, HVAC systems, control panels, and temporary power setups.
All cable is cut to length with no minimum order, shipped quickly from our large UK stock.
As a trusted small business, we offer reliable service, competitive pricing, and fast UK-wide delivery.

  • Copper Conductors – Provide efficient electrical conductivity
  • PVC Insulation – Offers electrical insulation and protection
  • Galvanized Steel Wire Braid (SWB) – Enhances mechanical strength and protects against external damage
  • PVC Outer Sheath – Ensures flexibility and resistance to environmental factors like moisture and oils.

  • Coloured Cores (Grey, Brown, Black, Greeen/Yellow) – Makes installation faster and safer
  • Galvanised Steel Wire Braid – Delivers robust protection against impact and abrasion
  • High Flexibility – Perfect for tight spaces, moving machinery, and dynamic installations
  • Transparent Sheath – Quick visual checks reduce downtime and improve maintenance
  • Temperature Resistant – Stable operation in demanding indoor or sheltered environments
  • UK Industry Standard – Built to BS EN 50525-2-11 / IEC standards

Cable Cut-to-Length – Fast, Accurate & Ready to Install!

Product Code: 110013

Product image

0.75mm² x 4Core SY Cable

Specification

Outer Sheath : PVC
Sheath Colour : Clear
Braiding : Galvanised Steel Wire Braid
Insulation : PVC
Core Colour : Grey, Brown, Black, Greeen/Yellow
Conductor : Class 5 flexible plain copper
Voltage : 300/500V
Max. Operating Temperature : 70°C
Max. Conductor Temperature Rating : 60°C (mobile)
Max. Conductor Temperature Rating : 90°C (fixed)
Approx. Weight 0.108kgs/mtr
Overall Diameter 9.0mm
Length (mtrs) Price (excl. vat)
1-49 £0.89
50-99 £0.82
100-249 £0.76
250-499 £0.73
500+ £0.72

Price per metre

✔ Secure Checkout • ✔ UK Stock

Click for delivery information

Accessories

Click for SY Glands        Click for Sockets

Product Code: 110014

Product image

1mm² x 4Core SY Cable

Specification

Outer Sheath : PVC
Sheath Colour : Clear
Braiding : Galvanised Steel Wire Braid
Insulation : PVC
Core Colour : Grey, Brown, Black, Greeen/Yellow
Conductor : Class 5 flexible plain copper
Voltage : 300/500V
Max. Operating Temperature : 70°C
Max. Conductor Temperature Rating : 60°C (mobile)
Max. Conductor Temperature Rating : 90°C (fixed)
Approx. Weight 0.129kgs/mtr
Overall Diameter 9.8mm
Length (mtrs) Price (excl. vat)
1-49 £0.96
50-99 £0.89
100-249 £0.82
250-499 £0.79
500+ £0.77

Price per metre

✔ Secure Checkout • ✔ UK Stock

Click for delivery information

Accessories

Click for SY Glands        Click for Sockets

Product Code: 110015

Product image

1.5mm² x 4Core SY Cable

Specification

Outer Sheath : PVC
Sheath Colour : Clear
Braiding : Galvanised Steel Wire Braid
Insulation : PVC
Core Colour : Grey, Brown, Black, Greeen/Yellow
Conductor : Class 5 flexible plain copper
Voltage : 300/500V
Max. Operating Temperature : 70°C
Max. Conductor Temperature Rating : 60°C (mobile)
Max. Conductor Temperature Rating : 90°C (fixed)
Approx. Weight 0.156kgs/mtr
Overall Diameter 10.9mm
Length (mtrs) Price (excl. vat)
1-49 £1.75
50-99 £1.60
100-249 £1.46
250-499 £1.40
500+ £1.32

Price per metre

✔ Secure Checkout • ✔ UK Stock

Click for delivery information

Accessories

Click for SY Glands        Click for Sockets

Product Code: 110016

Product image

2.5mm² x 4Core SY Cable

Specification

Outer Sheath : PVC
Sheath Colour : Clear
Braiding : Galvanised Steel Wire Braid
Insulation : PVC
Core Colour : Grey, Brown, Black, Greeen/Yellow
Conductor : Class 5 flexible plain copper
Voltage : 300/500V
Max. Operating Temperature : 70°C
Max. Conductor Temperature Rating : 60°C (mobile)
Max. Conductor Temperature Rating : 90°C (fixed)
Approx. Weight 0.240kgs/mtr
Overall Diameter 11.4mm
Length (mtrs) Price (excl. vat)
1-49 £2.56
50-99 £2.50
100-249 £2.32
250-499 £2.17
500+ £2.05

Price per metre

✔ Secure Checkout • ✔ UK Stock

Click for delivery information

Accessories

Click for SY Glands        Click for Sockets

Product Code: 110017

Product image

4mm² x 4Core SY Cable

Specification

Outer Sheath : PVC
Sheath Colour : Clear
Braiding : Galvanised Steel Wire Braid
Insulation : PVC
Core Colour : Grey, Brown, Black, Greeen/Yellow
Conductor : Class 5 flexible plain copper
Voltage : 300/500V
Max. Operating Temperature : 70°C
Max. Conductor Temperature Rating : 60°C (mobile)
Max. Conductor Temperature Rating : 90°C (fixed)
Approx. Weight 0.322kgs/mtr
Overall Diameter 13.4mm
Length (mtrs) Price (excl. vat)
1-49 £2.87
50-99 £2.65
100-249 £2.46
250-499 £2.30
500+ £2.16

Price per metre

✔ Secure Checkout • ✔ UK Stock

Click for delivery information

Accessories

Click for SY Glands        Click for Sockets

Product Code: 110018

Product image

6mm² x 4Core SY Cable

Specification

Outer Sheath : PVC
Sheath Colour : Clear
Braiding : Galvanised Steel Wire Braid
Insulation : PVC
Core Colour : Grey, Brown, Black, Greeen/Yellow
Conductor : Class 5 flexible plain copper
Voltage : 300/500V
Max. Operating Temperature : 70°C
Max. Conductor Temperature Rating : 60°C (mobile)
Max. Conductor Temperature Rating : 90°C (fixed)
Approx. Weight 0.441kgs/mtr
Overall Diameter 16.5mm
Length (mtrs) Price (excl. vat)
1-49 £4.24
50-99 £3.90
100-249 £3.63
250-499 £3.48
500+ £3.39

Price per metre

✔ Secure Checkout • ✔ UK Stock

Click for delivery information

Accessories

Click for SY Glands        Click for Sockets

Product Code: 110019

Product image

10mm² x 4Core SY Cable

Specification

Outer Sheath : PVC
Sheath Colour : Clear
Braiding : Galvanised Steel Wire Braid
Insulation : PVC
Core Colour : Grey, Brown, Black, Greeen/Yellow
Conductor : Class 5 flexible plain copper
Voltage : 300/500V
Max. Operating Temperature : 70°C
Max. Conductor Temperature Rating : 60°C (mobile)
Max. Conductor Temperature Rating : 90°C (fixed)
Approx. Weight 0.689kgs/mtr
Overall Diameter 18.9mm
Length (mtrs) Price (excl. vat)
1-49 £7.03
50-99 £6.49
100-249 £6.02
250-499 £5.78
500+ £5.62

Price per metre

✔ Secure Checkout • ✔ UK Stock

Click for delivery information

Accessories

Click for SY Glands        Click for Sockets

Product Code: 110020

Product image

16mm² x 4Core SY Cable

Specification

Outer Sheath : PVC
Sheath Colour : Clear
Braiding : Galvanised Steel Wire Braid
Insulation : PVC
Core Colour : Grey, Brown, Black, Greeen/Yellow
Conductor : Class 5 flexible plain copper
Voltage : 300/500V
Max. Operating Temperature : 70°C
Max. Conductor Temperature Rating : 60°C (mobile)
Max. Conductor Temperature Rating : 90°C (fixed)
Approx. Weight 1.010kgs/mtr
Overall Diameter 22.3mm
Length (mtrs) Price (excl. vat)
1-49 £13.20
50-99 £12.19
100-249 £11.31
250-499 £10.56
500+ £10.29

Price per metre

✔ Secure Checkout • ✔ UK Stock

Click for delivery information

Accessories

Click for SY Glands        Click for Sockets

5 Core SY Cable

SY Cable image

Colour Coded Cores - Ideal for power disribution.

Cut to length from UK stock.

7 Core SY Cable

SY Cable image

Numbered Coded Cores - Ideal for control & communication.

Cut to length from UK stock.

12 Core SY Cable

SY Cable image

Numbered Coded Cores - Ideal for control & communication.

Cut to length from UK stock.

18 Core SY Cable

SY Cable image

Numbered Coded Cores - Ideal for control & communication.

Cut to length from UK stock.

25 Core SY Cable

SY Cable image

Numbered Coded Cores - Ideal for control & communication.

Cut to length from UK stock.
