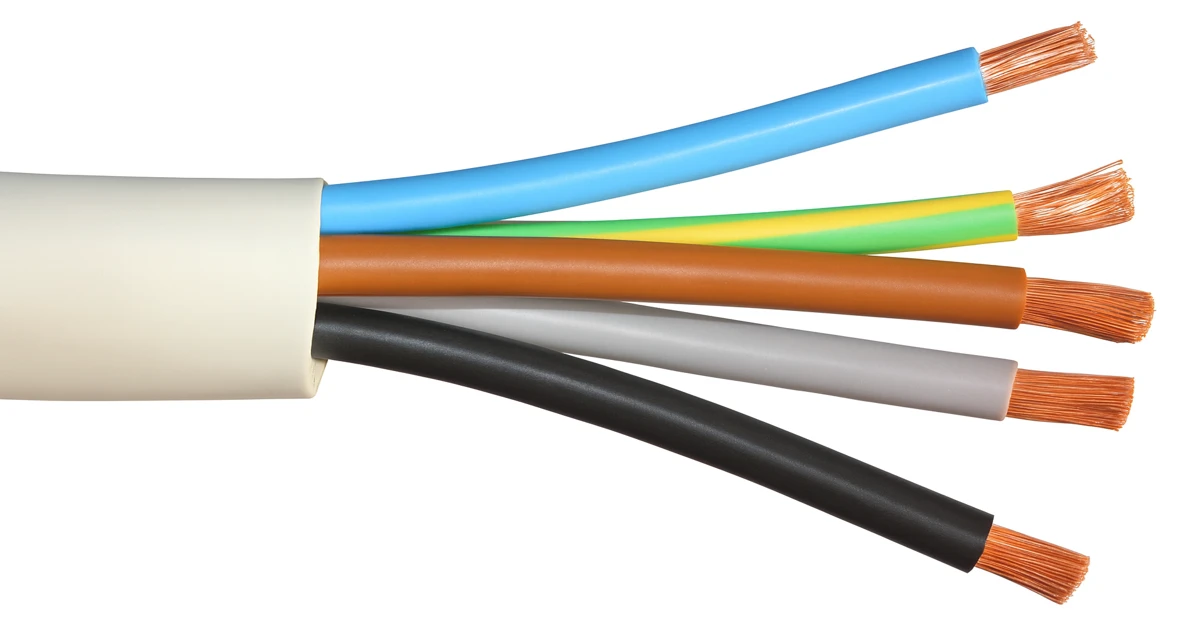

5 Core YY Cable

These flexible cables are used for measurement, control and screening in signal transmission, climatisation and power systems in industrial environments. In dry or damp premises. Only for indoor use.

Product Code: 130020

0.75mm² x 5Core YY Cable

Specification

Outer Sheath : PVC
Sheath Colour : Grey
Insulation : PVC
Core Colour : Brown, Blue, Grey, Black, G/Y
Conductor : Class 5 flexible plain copper
Voltage : 300/500V
Max. Operating Temperature : 70°C
Approx. Weight 0.089kgs/mtr
Overall Diameter 7.4mm

Length (mtrs)	Price (excl. vat)
1-49	£0.96
50-99	£0.87
100-249	£0.78
250-499	£0.73
500+	£0.67

Price per metre

Accessories

Product Code: 130021

1mm² x 5Core YY Cable

Specification

Length (mtrs)	Price (excl. vat)
1-49	£1.21
50-99	£1.09
100-249	£1.00
250-499	£0.92
500+	£0.86

Price per metre

Accessories

Product Code: 130022

1.5mm² x 5Core YY Cable

Specification

Length (mtrs)	Price (excl. vat)
1-49	£1.33
50-99	£1.23
100-249	£1.13
250-499	£1.10
500+	£1.07

Price per metre

Accessories

Product Code: 130023

2.5mm² x 5Core YY Cable

Specification

Length (mtrs)	Price (excl. vat)
1-49	£2.39
50-99	£2.20
100-249	£2.05
250-499	£1.90
500+	£1.78

Price per metre

Accessories

Product Code: 130024

4mm² x 5Core YY Cable

Specification

Length (mtrs)	Price (excl. vat)
1-49	£3.96
50-99	£3.63
100-249	£3.34
250-499	£3.11
500+	£2.90

Price per metre

Accessories

Product Code: 130025

6mm² x 5Core YY Cable

Specification

Length (mtrs)	Price (excl. vat)
1-49	£5.69
50-99	£5.40
100-249	£5.14
250-499	£4.87
500+	£4.64

Price per metre

Accessories

Product Code: 130026

10mm² x 5Core YY Cable

Specification

Length (mtrs)	Price (excl. vat)
1-49	£9.13
50-99	£8.44
100-249	£7.82
250-499	£7.50
500+	£7.30

Price per metre

Accessories

Product Code: 130027

16mm² x 5Core YY Cable

Specification

Length (mtrs)	Price (excl. vat)
1-49	£13.82
50-99	£12.76
100-249	£11.85
250-499	£11.36
500+	£11.06

Price per metre

Accessories

7 Core YY Cable

12 Core YY Cable

18 Core YY Cable

25 Core YY Cable

The Electric Cable Company (GB) Ltd

Tel: 01733 205123 email:sales@electriccable.co.uk

What is YY Cable?

YY cable is a versatile, multicore control cable commonly used in industrial automation, instrumentation, and general electrical control systems. It is characterized by its unshielded construction, making it suitable for applications where electromagnetic interference (EMI) is minimal. YY cables are favoured for their flexibility, ease of installation, and adaptability to a wide range of environments.

------------------

What are the key features of YY Cable?

Conductor: Made from stranded plain copper. Multicore options typically range from 2 to 61 cores.
Insulation: PVC (Polyvinyl Chloride) insulation for each conductor. Provides electrical insulation and heat resistance.
Outer Sheath: Made from grey PVC. Provides resistance to moisture, oil, and light mechanical stress.

------------------

What are the technical specifications of YY Cable?

Voltage Rating: 300/500V
Max. Temp. Rating: 70°C

------------------

What are the applications of YY Cable?

Industrial Automation: Used in control circuits for machinery, conveyors, and robotic systems.
Measurement and Instrumentation: Reliable for low-voltage signal transmission.
Building Management Systems: Suitable for HVAC systems and lighting control and access control systems..
Instrumentation: Reliable for low-voltage signal transmission in monitoring systems.
General Electrical Installations: Used in commercial, industrial, and some domestic setups.
Fixed and Mobile Equipment: Ideal for machinery that requires a certain degree of flexibility.

------------------

Why would you choose YY Cable?

Flexibility: Easy to handle and install, particularly in complex routing or tight spaces.
Versatility: Suitable for various control and signal applications in dry, damp, or light industrial environments.
Durability: Resistant to oils, chemicals, and light mechanical stress.
Ease of Identification: Numbered or color-coded cores simplify installation and maintenance.

------------------
