2 Core CY Cable

2 Core CY Cable image

3 Core CY Cable

3 Core CY Cable image

4 Core CY Cable

4 Core CY Cable image

5 Core CY Cable

5 Core CY Cable image

7 Core CY Cable

7 Core CY Cable image

12 Core CY Cable

Suitable for electronic control systems, voice frequency, signal and data transmission as connection cable.

Product Code:  270024

Thumbnail
× Enlarged Image

0.75mm x 12Core CY Control Cable LSF

Specification

Outer Sheath : LSOH
Sheath Colour : Grey
Screening : Tinned Copper Wire Braid
Braid Coverage : 65%
Binding Tape : Polyester Tape
Insulation : LSOH
Core Colour : Black with Numbers, G/Y
Conductor : Fine Stranded Copper Wire
Voltage : 300/500V
Working Temperature : -30°C to 70°C
Approx. Weight 0.181kgs/mtr
Overall Diameter 10.4mm

Length (mtrs) Price (excl. vat)
1-49£2.17
50-99£2.00
100-249£1.86
250-499£1.78
500+£1.73

Price per metre



✔ Secure Checkout • ✔ UK Stock

Click for delivery Information

Accessories

Click for YY Glands

Product Code:  270025

Thumbnail
× Enlarged Image

1mm x 12Core CY Control Cable LSF

Specification

Outer Sheath : LSOH
Sheath Colour : Grey
Screening : Tinned Copper Wire Braid
Braid Coverage : 65%
Binding Tape : Polyester Tape
Insulation : LSOH
Core Colour : Black with Numbers, G/Y
Conductor : Fine Stranded Copper Wire
Voltage : 300/500V
Working Temperature : -30°C to 70°C
Approx. Weight 0.230kgs/mtr
Overall Diameter 10.8mm

Length (mtrs) Price (excl. vat)
1-49£2.65
50-99£2.44
100-249£2.27
250-499£2.18
500+£2.11

Price per metre



✔ Secure Checkout • ✔ UK Stock

Click for delivery Information

Accessories

Click for YY Glands

Product Code:  270026

Thumbnail
× Enlarged Image

1.5mm x 12Core CY Control Cable LSF

Specification

Outer Sheath : LSOH
Sheath Colour : Grey
Screening : Tinned Copper Wire Braid
Braid Coverage : 65%
Binding Tape : Polyester Tape
Insulation : LSOH
Core Colour : Black with Numbers, G/Y
Conductor : Fine Stranded Copper Wire
Voltage : 300/500V
Working Temperature : -30°C to 70°C
Approx. Weight 0.307kgs/mtr
Overall Diameter 12.9mm

Length (mtrs) Price (excl. vat)
1-49£4.24
50-99£3.90
100-249£3.64
250-499£3.48
500+£3.39

Price per metre



✔ Secure Checkout • ✔ UK Stock

Click for delivery Information

Accessories

Click for YY Glands

Product Code:  270027

Thumbnail
× Enlarged Image

2.5mm x 12Core CY Control Cable LSF

Specification

Outer Sheath : LSOH
Sheath Colour : Grey
Screening : Tinned Copper Wire Braid
Braid Coverage : 65%
Binding Tape : Polyester Tape
Insulation : LSOH
Core Colour : Black with Numbers, G/Y
Conductor : Fine Stranded Copper Wire
Voltage : 300/500V
Working Temperature : -30°C to 70°C
Approx. Weight 0.400kgs/mtr
Overall Diameter 13.6mm

Length (mtrs) Price (excl. vat)
1-49£12.30
50-99£11.28
100-249£10.41
250-499£9.66
500+£9.01

Price per metre



✔ Secure Checkout • ✔ UK Stock

Click for delivery Information

Accessories

Click for YY Glands

The Electric Cable Company (GB) Ltd


Tel: 01733 205123 email:sales@electriccable.co.uk


visa excepted mastercard excepted american express excepted PayPal accepted

What is CY Cable?

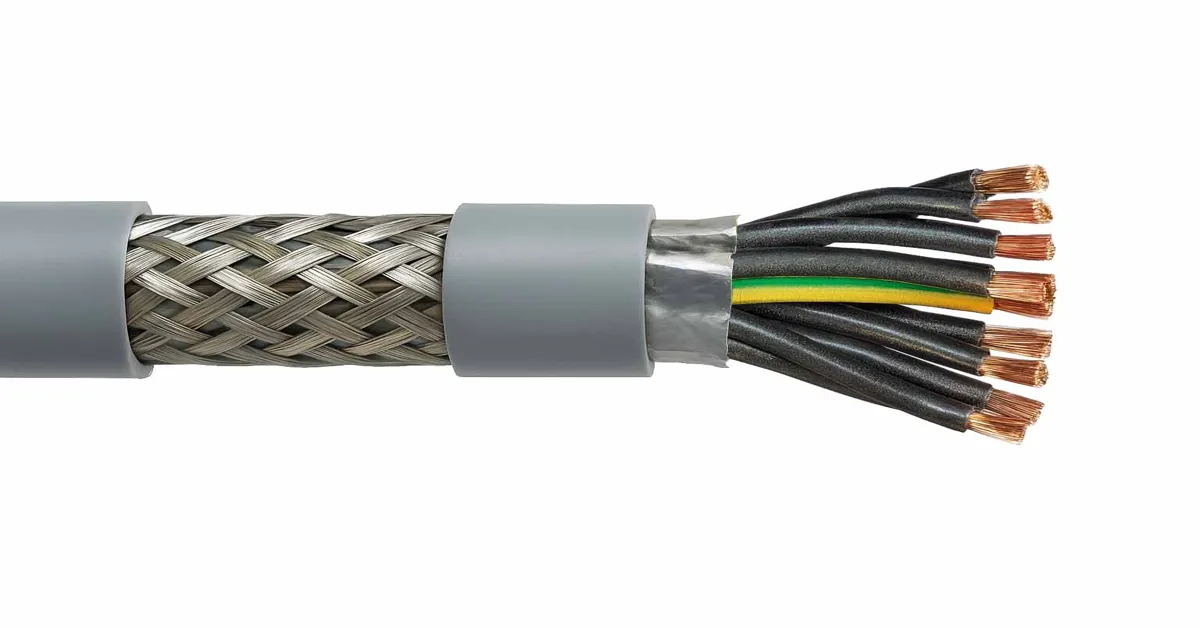

CY cable is a flexible, shielded control cable designed for use in environments where electromagnetic interference (EMI) is a concern. It features a tinned copper wire braid shield, which provides effective EMI shielding and mechanical protection, making it suitable for applications requiring clean signal transmission and durability.

------------------

What are the key features of CY Cable?

Conductor: Made from stranded plain copper. Provides excellent flexibility and conductivity.
Insulation: LSZH reduces the emission of smoke and harmful halogen gases when exposed to high temperatures or fire.
Shielding:Tinned Copper Wire Braid (TCWB) shield provides protection against EMI and RFI (radio frequency interference). Moderate mechanical protection.
Outer Sheath: LSZH reduces the emission of smoke and harmful halogen gases when exposed to high temperatures or fire.

------------------

What are the technical specifications of CY Cable?

Voltage Rating: 300/500V
Max. Temp. Rating: 70°C

------------------

What are the applications of CY Cable?

Industrial Automation: Ideal for controlling machinery, robotics, and process automation systems.
Measurement and Instrumentation: Ensures clean signal transmission in sensitive monitoring equipment.
Building Management Systems: Suitable for HVAC systems and lighting control and access control systems..
Instrumentation: Reliable for reducing noise in audio or data signal transmission.
Low-Voltage Power Circuits: Suitable for control panels and electrical installations with low-voltage requirements.

------------------

Why would you choose CY Cable?

EMI Shielding: The tinned copper wire braid protects against electrical noise, ensuring signal clarity. Flexibility: Suitable for dynamic installations with light mechanical stress or vibration.
Versatility: Can be used in both indoor and outdoor (protected) installations.
Durability: Resistant to oils, chemicals, and moderate wear and tear.
Ease of Handling: Flexible construction makes it easy to route and install in tight spaces.
Fire Safety: Emits low smoke and zero toxic halogen gases, enhancing occupant safety in case of a fire.

------------------
