2 Core CY Cable

Colour Coded Cores - Ideal for power disribution.

Cut to length from UK stock.

3 Core CY Cable

Colour Coded Cores - Ideal for power disribution.

Cut to length from UK stock.

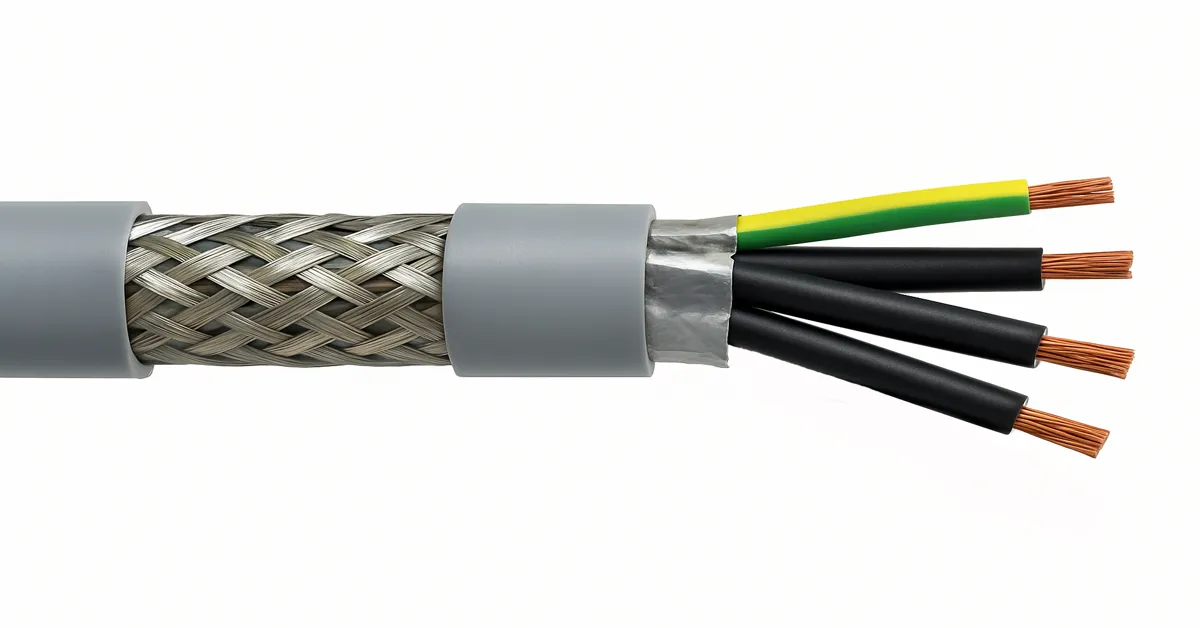

4 Core CY Control Cable

Our high-quality CY LSZH screened flexible control cable is designed for industrial and commercial applications where reliability, flexibility, EMC protection, and fire safety are essential. Manufactured with finely stranded copper conductors, a tinned copper wire braid, and a Low Smoke Zero Halogen (LSZH) outer sheath, CY LSZH cable offers excellent resistance to mechanical stress whilst helping to reduce smoke and toxic gas emissions in the event of fire. Ideal for use in control panels, manufacturing equipment, conveyor systems, HVAC systems, automation, and public buildings, CY LSZH cable provides dependable performance in environments where electrical interference and enhanced safety standards are important. Available in a wide range of sizes and core configurations with fast UK delivery.

Numbered Cores (Black cores with white number plus G/Y) – Makes installation faster and safer
Screening – Overall tinned copper wire braid providing EMC protection against electrical interference
High Flexibility – Perfect for tight spaces, moving machinery, and dynamic installations
Outer Sheath – Low Smoke Zero Halogen (LSZH) compound

Cable Cut-to-Length – Fast, Accurate & Ready to Install!

Product Code: 270010

0.75mm² x 4Core CY Cable LSF

Specification

Outer Sheath : LSOH
Sheath Colour : Grey
Screening : Tinned Copper Wire Braid
Braid Coverage : 65%
Binding Tape : Polyester Tape
Insulation : LSOH
Core Colour : Black with Numbers plus G/Y
Conductor : Fine Stranded Copper Wire
Voltage : 300/500V
Working Temperature : -30°C to 70°C
Max. Conductor Temperature Rating : 60°C (mobile)
Max. Conductor Temperature Rating : 90°C (fixed)
Approx. Weight 0.076kgs/mtr
Overall Diameter 6.9mm
