7-2-*Core LSZH Defence Standard Cable
DEF61-12 Part 4

This is a multi-core flexible cable which is compact in size with a high working voltage, it is available in a varied range of cores to suit most applications where high density wiring is required. This is a multi-core flexible cable mainly used in Computers, Aircraft, Avionic control systems, Data processing, Process control, Military vehicles and other electronic applications. The LSZH construction ensures enhanced performance in the event of fire reducing the emisions of smoke and toxic fumes making them a perfect solution for sensitive equipment areas. Not to be used for direct connection to mains supply.

Product Code:  290017

Defence Cable image

Image above is 2 core

7 - 2 - 2C LSZH (2core) mtr

Specification

Outer Sheath : LSZH
Sheath Colour : Black
Tape : Mylar
Screen : Tinned Copper Wire Braid Insulation : LSZH
Amount OF Cores : 2
Core Colour : Red, Blue
Conductor : 7/0.2mm Stranded Tinned Copper Conductor
Voltage : 440V
Fixed Temp. Rating : -30°C to 60°C
Flexed Temp. Rating : -15°C to 60°C
Minimum Bending Radius : 7.5 x O/D
Approx. Weight 0.023kgs/mtr
Overall Diameter 4.6mm

1-4950-99100-249250-499500+
£0.34£0.27£0.25£0.25£0.25


Click for delivery Information

Product Code:  290018

Defence Cable image

Image above is 2 core

7 - 2 - 4C LSZH (4core) mtr

Specification

Outer Sheath : LSZH
Sheath Colour : Black
Tape : Mylar
Screen : Tinned Copper Wire Braid Insulation : LSZH
Amount OF Cores : 4
Core Colour : Red, Blue, Green, Yellow
Conductor : 7/0.2mm Stranded Tinned Copper Conductor
Voltage : 440V
Fixed Temp. Rating : -30°C to 60°C
Flexed Temp. Rating : -15°C to 60°C
Minimum Bending Radius : 7.5 x O/D
Approx. Weight 0.032kgs/mtr
Overall Diameter 5.6mm

1-4950-99100-249250-499500+
£0.48£0.38£0.35£0.35£0.35


Click for delivery Information

Product Code:  290019

Defence Cable image

Image above is 2 core

7 - 2 - 6C LSZH (6core) mtr

Specification

Outer Sheath : LSZH
Sheath Colour : Black
Tape : Mylar
Screen : Tinned Copper Wire Braid Insulation : LSZH
Amount OF Cores : 6
Core Colour : Red, Blue, Green, Yellow, White, Black
Conductor : 7/0.2mm Stranded Tinned Copper Conductor
Voltage : 440V
Fixed Temp. Rating : -30°C to 60°C
Flexed Temp. Rating : -15°C to 60°C
Minimum Bending Radius : 7.5 x O/D
Approx. Weight 0.053kgs/mtr
Overall Diameter 6.6mm

1-4950-99100-249250-499500+
£0.71£0.59£0.52£0.52£0.52


Click for delivery Information

Product Code:  290020

Defence Cable image

Image above is 2 core

7 - 2 - 8C LSZH (8core) mtr

Specification

Outer Sheath : LSZH
Sheath Colour : Black
Tape : Mylar
Screen : Tinned Copper Wire Braid Insulation : LSZH
Amount OF Cores : 8
Core Colour : Red, Blue, Green, Yellow, White, Black, Brown, Violet
Conductor : 7/0.2mm Stranded Tinned Copper Conductor
Voltage : 440V
Fixed Temp. Rating : -30°C to 60°C
Flexed Temp. Rating : -15°C to 60°C
Minimum Bending Radius : 7.5 x O/D
Approx. Weight 0.061kgs/mtr
Overall Diameter 6.9mm

1-4950-99100-249250-499500+
£0.77£0.64£0.57£0.57£0.57


Click for delivery Information

Product Code:  290021

Defence Cable image

Image above is 2 core

7 - 2 - 12C LSZH (12core) mtr

Specification

Outer Sheath : LSZH
Sheath Colour : Black
Tape : Mylar
Screen : Tinned Copper Wire Braid Insulation : LSZH
Amount OF Cores : 12
Core Colour : Red, Blue, Green, Yellow, White, Black, Brown, Violet, Orange, Pink, Turquoise, Grey
Conductor : 7/0.2mm Stranded Tinned Copper Conductor
Voltage : 440V
Fixed Temp. Rating : -30°C to 60°C
Flexed Temp. Rating : -15°C to 60°C
Minimum Bending Radius : 7.5 x O/D
Approx. Weight 0.062kgs/mtr
Overall Diameter 8.2mm

1-4950-99100-249250-499500+
£1.21£0.98£0.87£0.87£0.87


Click for delivery Information

Product Code:  290022

Defence Cable image

Image above is 2 core

7 - 2 - 25C LSZH (25core) mtr

Specification

Outer Sheath : LSZH
Sheath Colour : Black
Tape : Mylar
Screen : Tinned Copper Wire Braid Insulation : LSZH
Amount OF Cores : 25
Conductor : 7/0.2mm Stranded Tinned Copper Conductor
Voltage : 440V
Fixed Temp. Rating : -30°C to 60°C
Flexed Temp. Rating : -15°C to 60°C
Minimum Bending Radius : 7.5 x O/D
Approx. Weight 0.148kgs/mtr
Overall Diameter 9.5mm

1-4950-99100-249250-499500+
£2.90£2.48£2.19£2.19£2.19


Click for delivery Information

16-2-*Core Defence Standard Cable
DEF61-12 Part 5

This is a multi-core flexible cable which is compact in size with a high working voltage, it is available in a varied range of cores to suit most applications where high density wiring is required. This is a multi-core flexible cable mainly used in Computers, Aircraft, Avionic control systems, Data processing, Process control, Military vehicles and other electronic applications. Not to be used for direct connection to mains supply.

Product Code:  290039

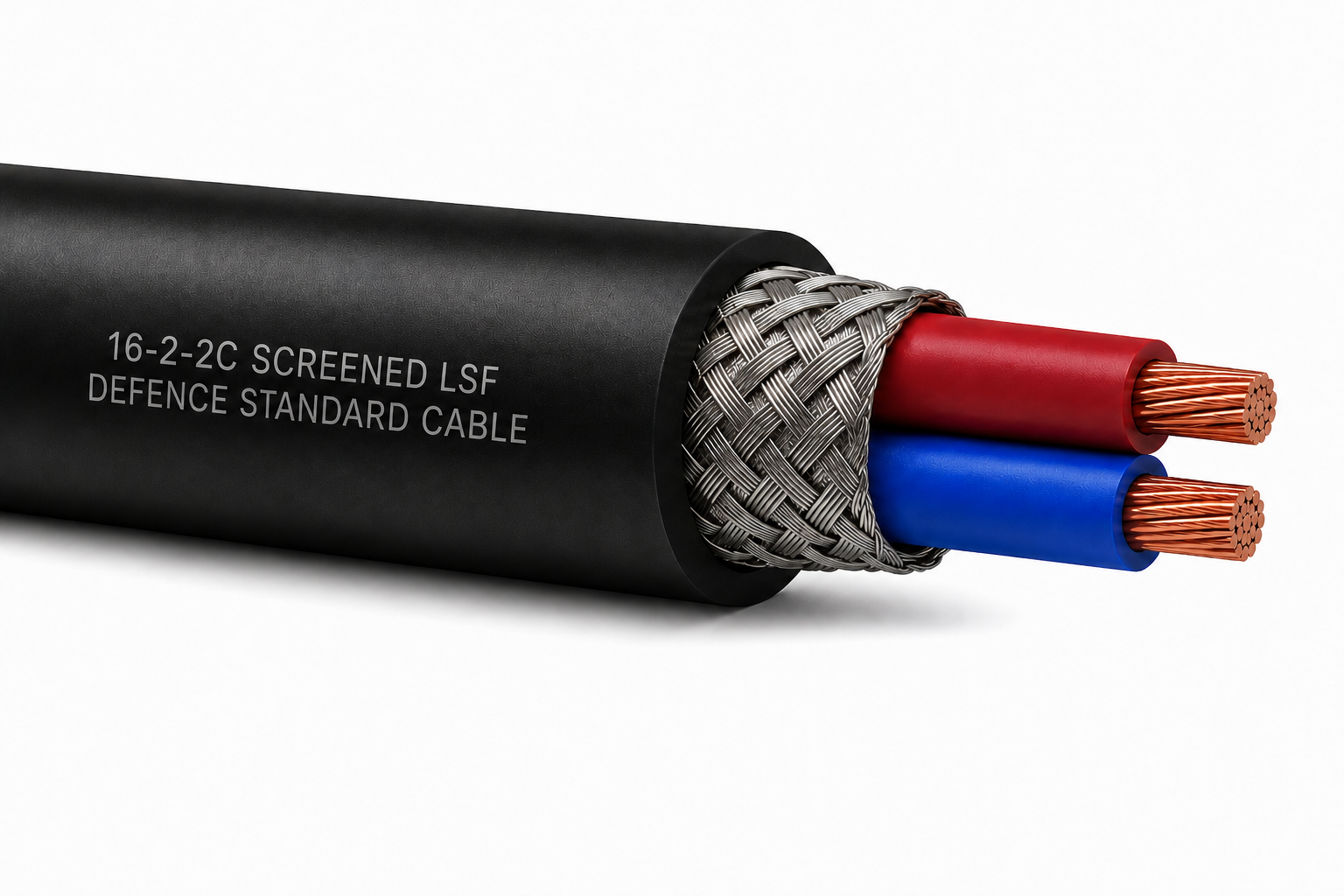

Defence Cable image

Image above is 2 core

16 - 2 - 2C LSZH (2core) mtr

Specification

Outer Sheath : LSZH
Sheath Colour : Black
Tape : Mylar
Screen : Tinned Copper Wire Braid Insulation : LSZH
Amount OF Cores : 2
Core Colour : Red, Blue
Conductor : 16/0.2mm Stranded Tinned Copper Conductor
Voltage : 440V
Fixed Temp. Rating : -30°C to 60°C
Flexed Temp. Rating : -15°C to 60°C
Minimum Bending Radius : 7.5 x O/D
Approx. Weight 0.066kgs/mtr
Overall Diameter 6.5mm

1-4950-99100-249250-499500+
£0.58£0.49£0.44£0.44£0.44


Click for delivery Information

Product Code:  290040

Defence Cable image

Image above is 2 core

16 - 2 - 4C LSZH (4core) mtr

Specification

Outer Sheath : LSZH
Sheath Colour : Black
Tape : Mylar
Screen : Tinned Copper Wire Braid Insulation : LSZH
Amount OF Cores : 4
Core Colour : Red, Blue, Green, Yellow
Conductor : 16/0.2mm Stranded Tinned Copper Conductor
Voltage : 440V
Fixed Temp. Rating : -30°C to 60°C
Flexed Temp. Rating : -15°C to 60°C
Minimum Bending Radius : 7.5 x O/D
Approx. Weight 0.076kgs/mtr
Overall Diameter 6.8mm

1-4950-99100-249250-499500+
£0.82£0.67£0.61£0.61£0.61


Click for delivery Information

Product Code:  290041

Defence Cable image

Image above is 2 core

16 - 2 - 6C LSZH (6core) mtr

Specification

Outer Sheath : LSZH
Sheath Colour : Black
Tape : Mylar
Screen : Tinned Copper Wire Braid Insulation : LSZH
Amount OF Cores : 6
Core Colour : Red, Blue, Green, Yellow, White, Black
Conductor : 16/0.2mm Stranded Tinned Copper Conductor
Voltage : 440V
Fixed Temp. Rating : -30°C to 60°C
Flexed Temp. Rating : -15°C to 60°C
Minimum Bending Radius : 7.5 x O/D
Approx. Weight 0.114kgs/mtr
Overall Diameter 8.3mm

1-4950-99100-249250-499500+
£1.08£0.91£0.81£0.81£0.81


Click for delivery Information

Product Code:  290042

Defence Cable image

Image above is 2 core

16 - 2 - 8C LSZH (8core) mtr

Specification

Outer Sheath : LSZH
Sheath Colour : Black
Tape : Mylar
Screen : Tinned Copper Wire Braid Insulation : LSZH
Amount OF Cores : 8
Core Colour : Red, Blue, Green, Yellow, White, Black, Brown, Violet
Conductor : 16/0.2mm Stranded Tinned Copper Conductor
Voltage : 440V
Fixed Temp. Rating : -30°C to 60°C
Flexed Temp. Rating : -15°C to 60°C
Minimum Bending Radius : 7.5 x O/D
Approx. Weight 0.135kgs/mtr
Overall Diameter 8.9mm

1-4950-99100-249250-499500+
£1.38£1.15£1.03£1.03£1.03


Click for delivery Information

Product Code:  290043

Defence Cable image

Image above is 2 core

16 - 2 - 12C PVC (12core) mtr

Specification

Outer Sheath : PVC
Sheath Colour : Black
Tape : Mylar
Screen : Tinned Copper Wire Braid Insulation : PVC
Amount OF Cores : 12
Core Colour : Red, Blue, Green, Yellow, White, Black, Brown, Violet, Orange, Pink, Turquoise, Grey
Conductor : 16/0.2mm Stranded Tinned Copper Conductor
Voltage : 440V
Fixed Temp. Rating : -30°C to 60°C
Flexed Temp. Rating : -15°C to 60°C
Minimum Bending Radius : 7.5 x O/D
Approx. Weight 0.183kgs/mtr
Overall Diameter 10.5mm

1-4950-99100-249250-499500+
£2.79£2.32£2.08£2.08£2.08


Click for delivery Information

37-3-2R 2Core PVC Defence Standard Cable
DEF61-12 Part 5

This is a multi-core flexible cable which is compact in size with a high working voltage, it is available in a varied range of cores to suit most applications where high density wiring is required. This is a multi-core flexible cable mainly used in Computers, Aircraft, Avionic control systems, Data processing, Process control, Military vehicles and other electronic applications. Not to be used for direct connection to mains supply.

Product Code:  290049

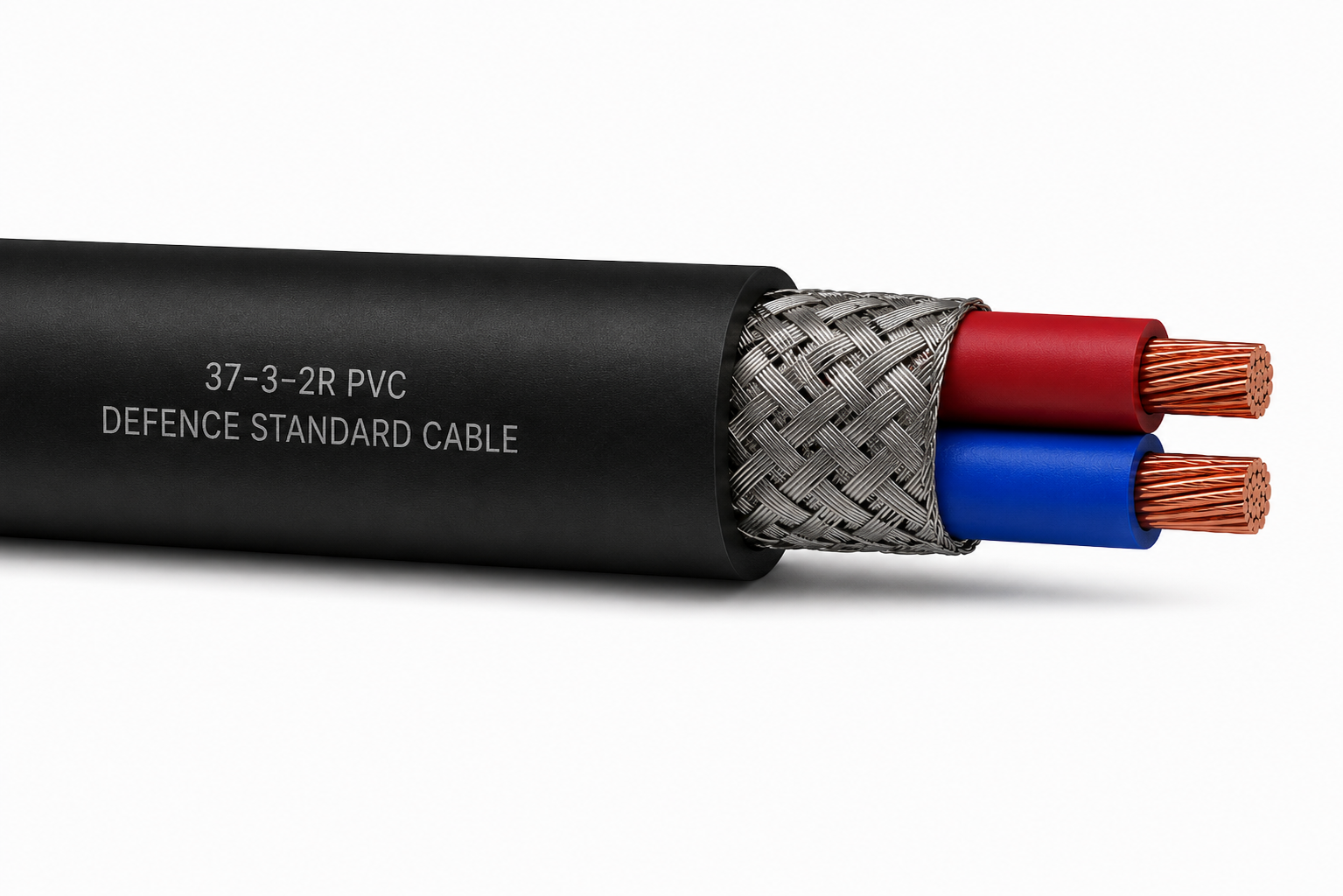

Defence Cable image

Image above is 2 core

37 - 3 - 2R PVC (2core) mtr

Specification

Outer Sheath : PVC
Sheath Colour : Black
Screen : Tinned Copper Wire Braid Insulation : PVC
Amount OF Cores : 2
Core Colour : Red, Blue
Conductor : 32/0.315mm x 0.64MM Stranded Tinned Copper Conductor
Voltage : 440V
Fixed Temp. Rating : 70°C
Flexed Temp. Rating : 70°C
Minimum Bending Radius : 7.5 x O/D
Approx. Weight 0.172kgs/mtr
Overall Diameter 0.0mm

1-4950-99100-249250-499500+
£1.72£1.72£1.72£1.72£1.72


Click for delivery Information
